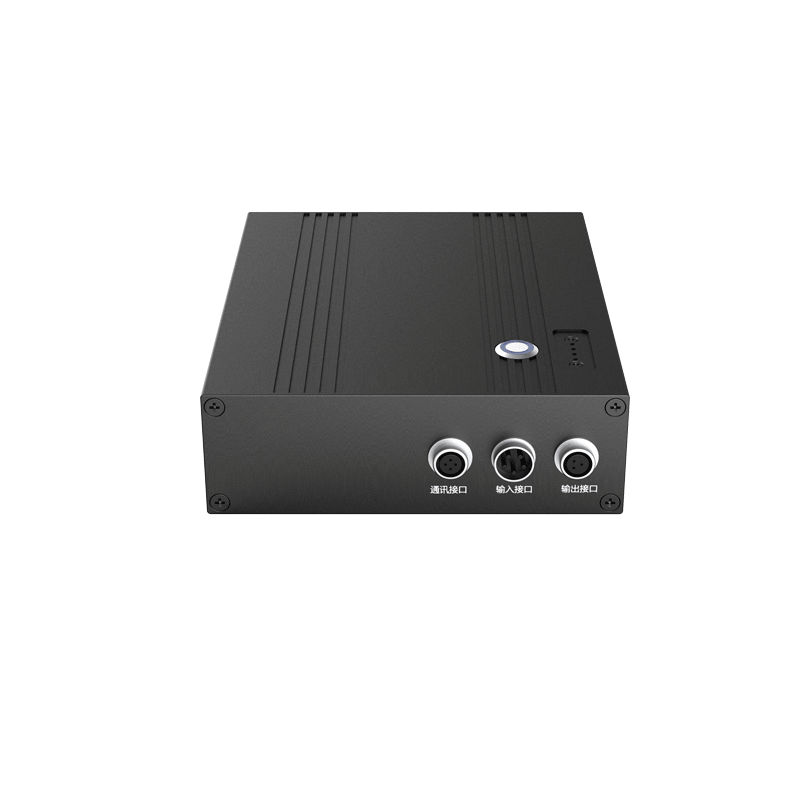

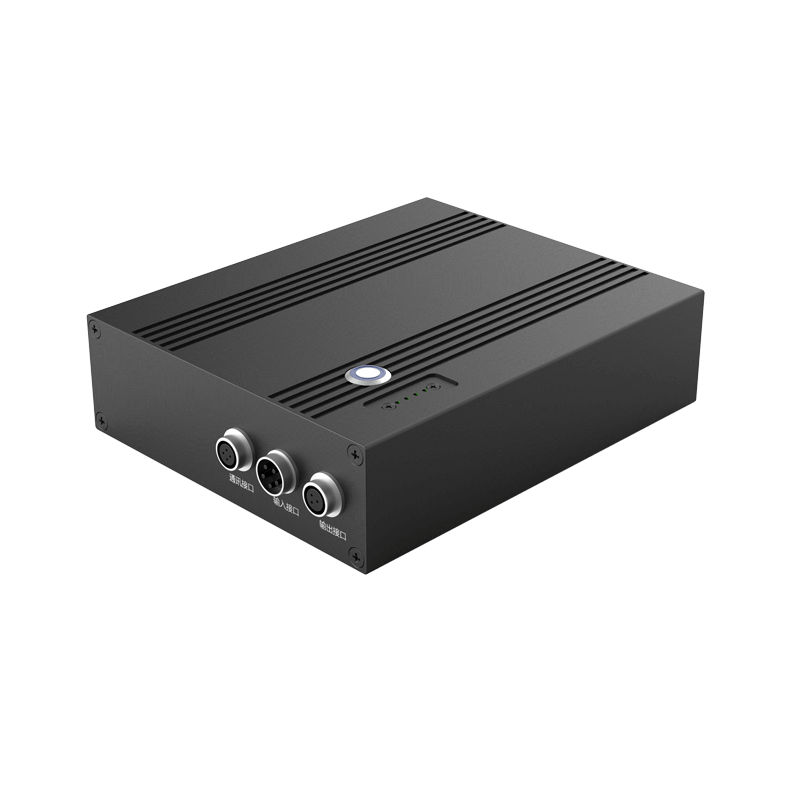

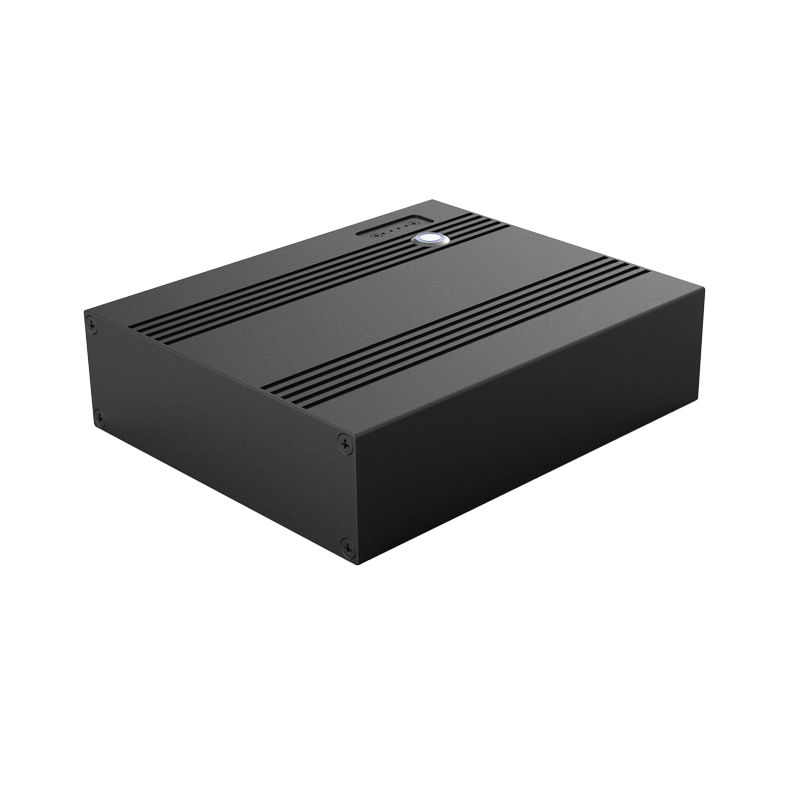

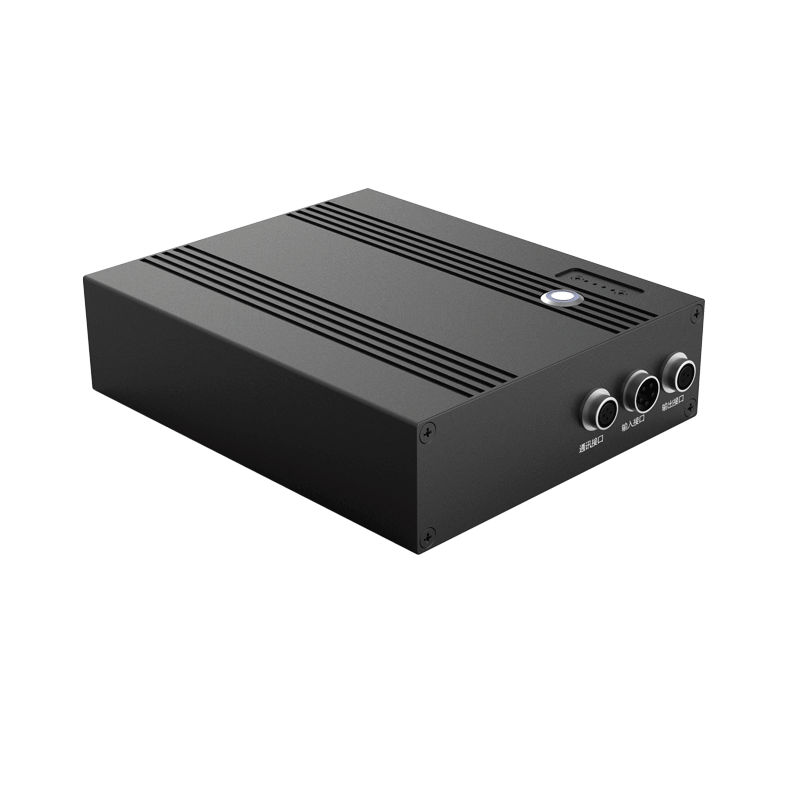

10.8V 33Ah 18650 Lithium-ion Battery Pack for Gimbal Control

Product Details:
Cell Model: 18650/3.6V/3.35Ah
Battery Configuration: 18650-3S10P/10.8V/33Ah
Nominal Voltage: 10.8V
Nominal Capacity: 33Ah
Charging Voltage: 12.8V
Charging Current: ≤6A
Discharging Current: 6A
Instantaneous Discharging Current: 15A
Discharging Cut-off Voltage: 7.5V
Finished Product Internal Resistance: ≤200mΩ
Battery Weight: 2.5Kg
Product Size: 204×167×54mm (Max)
Charging Temperature: 0～ 45℃
Discharging Temperature: -20～60℃
Storage Temperature: -20～40℃
Temperature Protection: 65°C±5℃
Battery Casing: Aluminum alloy
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Temperature Protection, Balancing, etc.

Product Features:
Battery level display: LED lights indicate the battery level, providing a visual understanding of the battery status.
Waterproof aviation connector: Utilizes a waterproof connector for safe and reliable connections.
Communication interface: Adopts RS485 communication protocol to read battery voltage, current, temperature, capacity, and other information.
Data communication management: Uses precision IC and TI software management chip for accurate data transmission and precise temperature control, minimizing safety hazards.
Battery pack safety with temperature probe: The battery pack is equipped with a temperature probe and automatically activates protection if the temperature exceeds the set limit.
High cycle life of the battery pack, conforming to the values of low carbon, energy-saving, and environmental protection.
