Product Details:
Cell Model: 18650/3.65V/2750mAh
Battery Configuration: 18650-7S7P/25.55V/19250mAh
Nominal Voltage: 25.55V
Nominal Capacity: 19250mAh
Charging Voltage: 29.4V
Charging Current: ≤9.6A
Discharging Current: 5A
Instantaneous Discharging Current: 9.6A
Discharging Cut-off Voltage: 19.6V
Finished Product Internal Resistance: ≤150mΩ
Battery Weight: 4.7Kg
Product Size: 181×181×91mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -20～60℃
Storage Temperature: -20～35℃

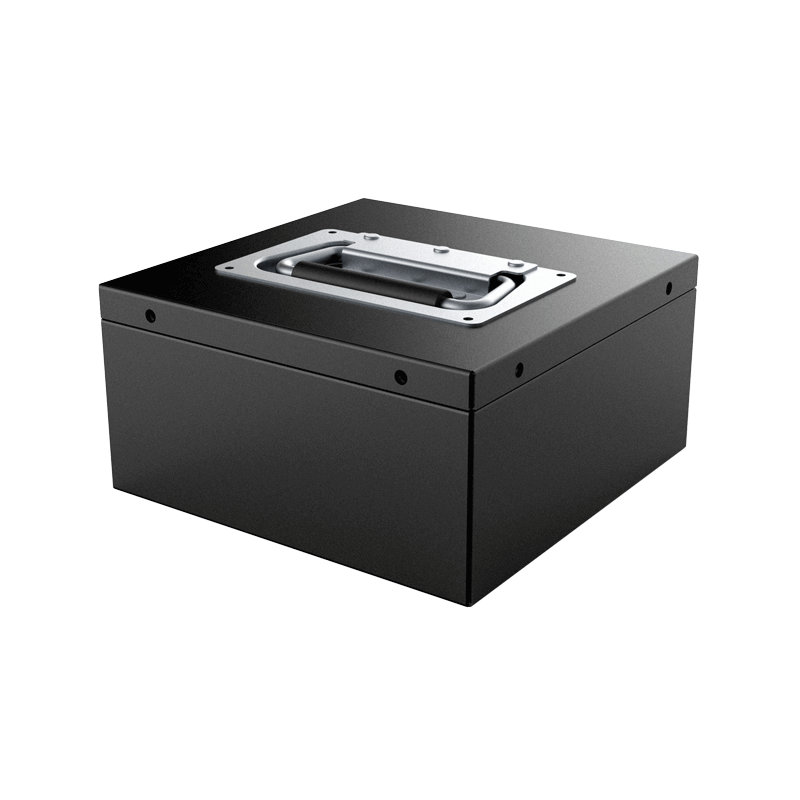

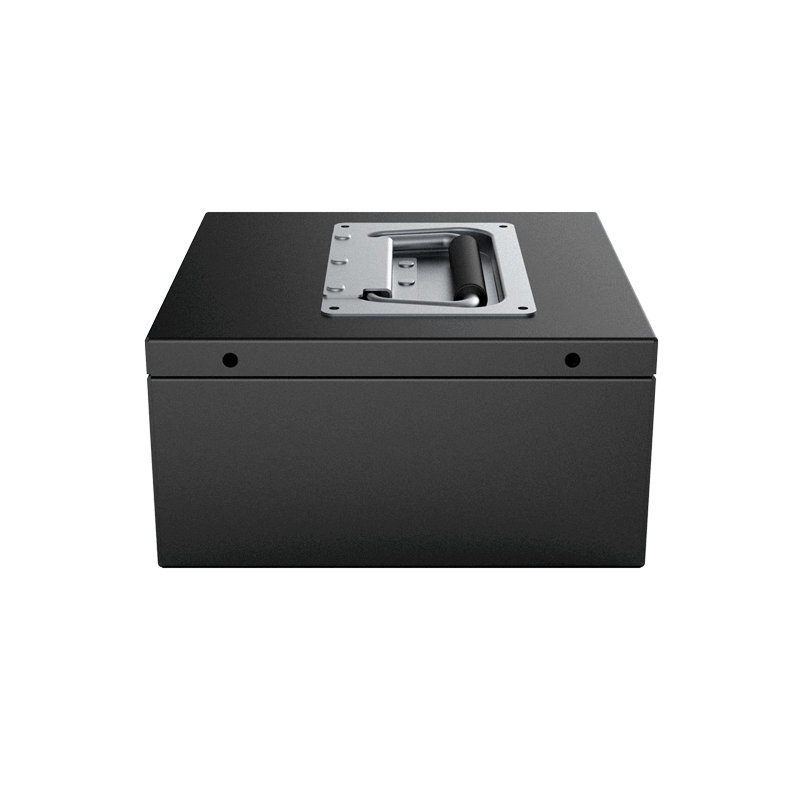

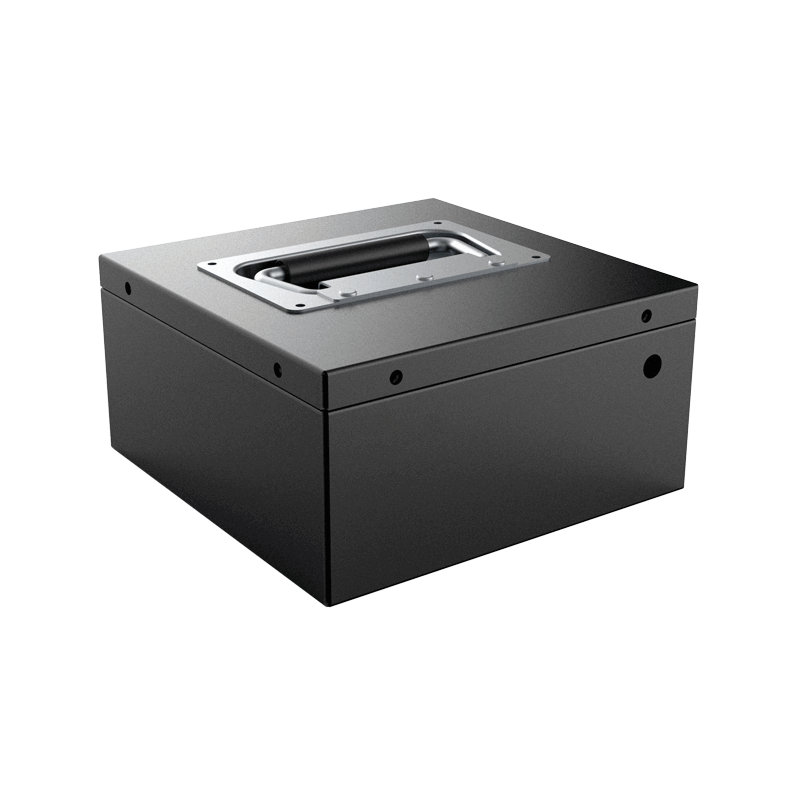

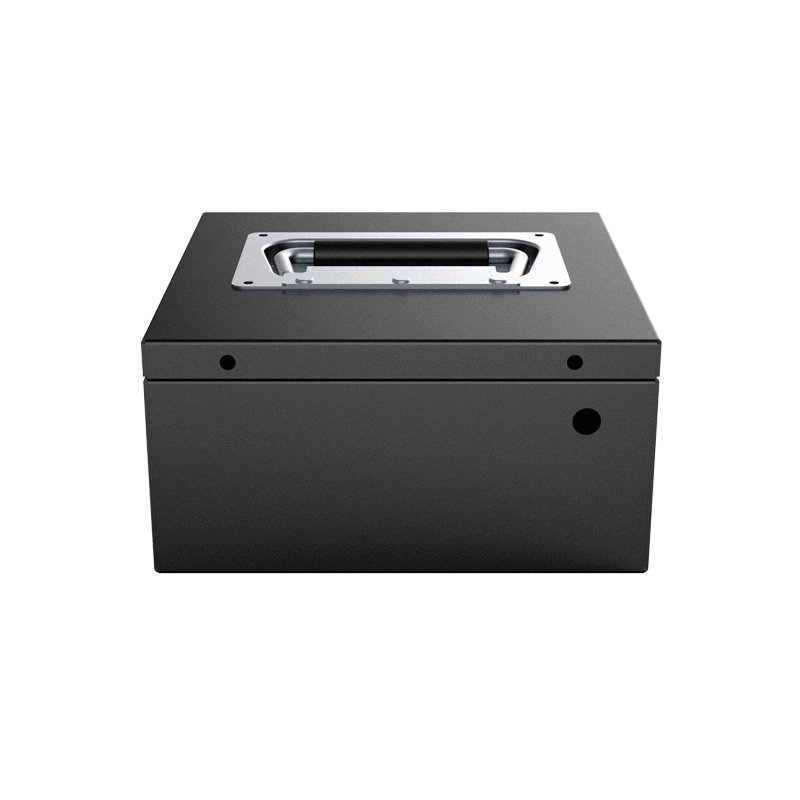

Battery Casing: Sheet metal
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, and more
Application Field: Portable Devices
Product Features:
Data communication management: Utilizes 485 communication for accurate data transmission and precise temperature control, minimizing safety hazards.
Battery pack safety and excellent performance with long cycle life.
High cycle life of the battery pack, conforming to the values of low carbon, energy-saving, and environmental protection.
