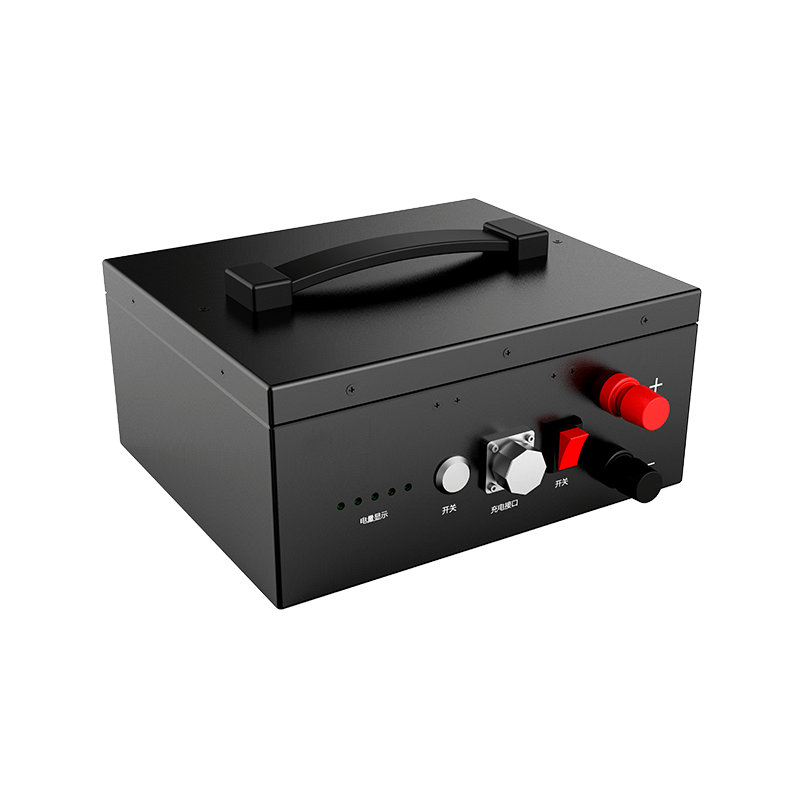

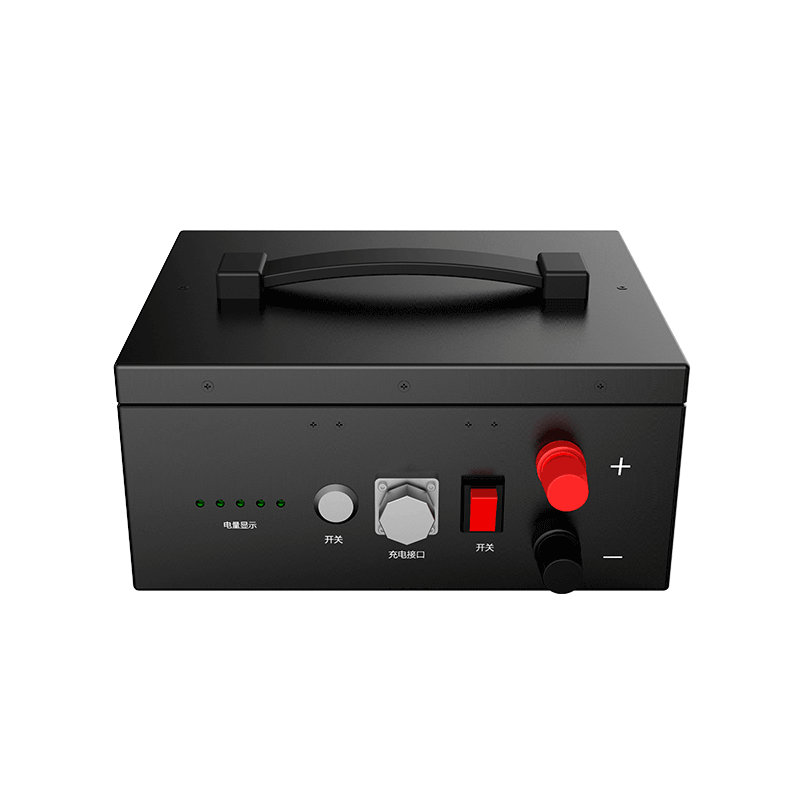

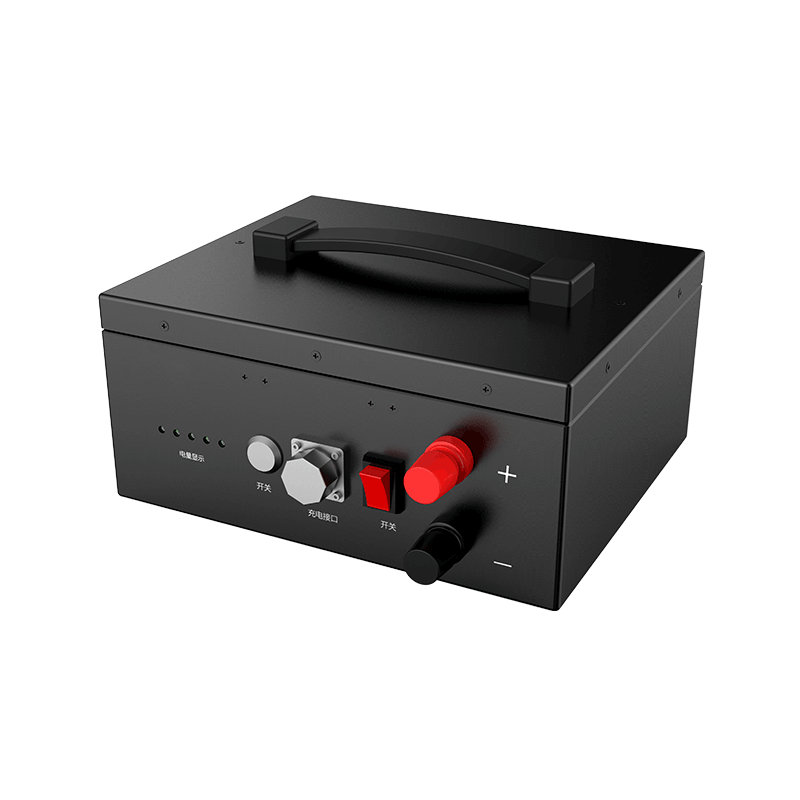

25.2V 20Ah 18650 Special Vehicle Power Storage Li-ion Battery

Product Details:
Cell Model: 18650/2600mAh/3.6V
Battery Configuration: 18650-7S8P/25.2V/20Ah
Nominal Voltage: 25.2V
Nominal Capacity: 20Ah
Charging Voltage: 29.4V
Charging Current: ≤10A
Discharging Current: 10A
Instantaneous Discharging Current: 20A
Discharging Cut-off Voltage: 21V
Finished Product Internal Resistance: ≤100mΩ
Battery Weight: 3Kg
Product Size: 190×170×90mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -20～55℃
Storage Temperature: -20～45℃
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Balancing, with optional 232 or 485 communication
Application Field: Special Vehicle Power Supply

Product Features:
Current: Supports continuous discharge of up to 20A.

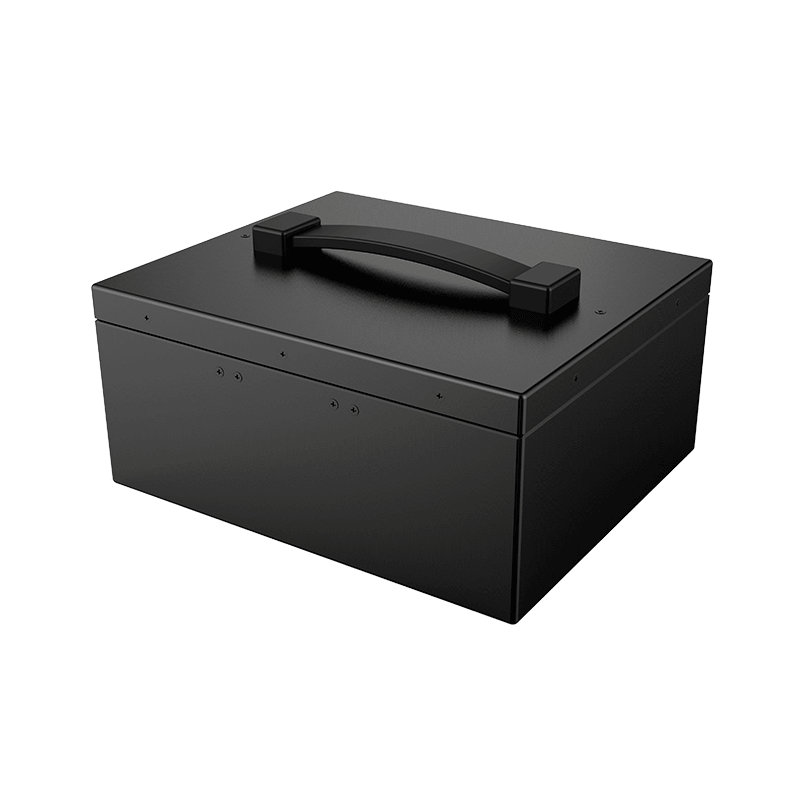

Casing: Portable handle design, waterproof and dustproof design.
Data Communication Management: Uses imported software management chips with optional 232 or 485 communication functionality, enabling precise data transmission and temperature control to eliminate potential safety hazards.
Output: Equipped with a 24V voltage stabilization module, capable of providing stable 24V DC output, with LED battery level indicator.
High cycle life of the battery pack.
Conforms to the values of low carbon, energy-saving, and environmental protection.
