Product Details:
Cell Model: 18650-3400mAh-3.6V
Battery Configuration: 18650-7S18P-60Ah-25.2V
Nominal Voltage: 25.2V
Nominal Capacity: 60Ah
Charging Voltage: 28.7V
Charging Current: ≤20A
Discharging Current: 12A
Instantaneous Discharging Current: 20A
Discharging Cut-off Voltage: 17.5V
Finished Product Internal Resistance: ≤200mΩ
Battery Weight: 7000g
Product Size: 240×180×160mm (Max)
Charging Temperature: 0～45°C
Discharging Temperature: -20～60°C
Storage Temperature: -20～ 35°C

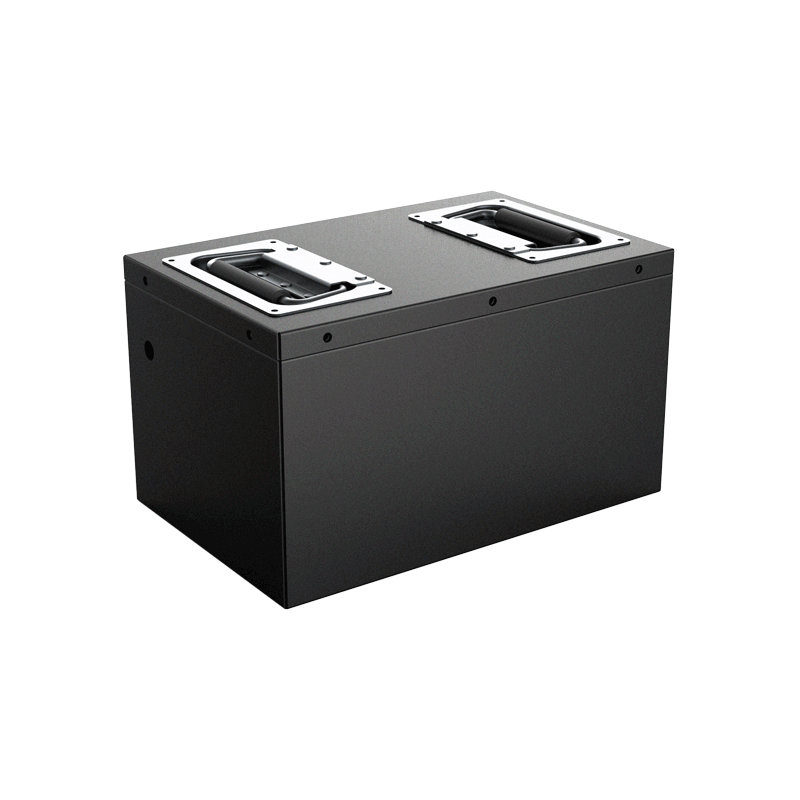

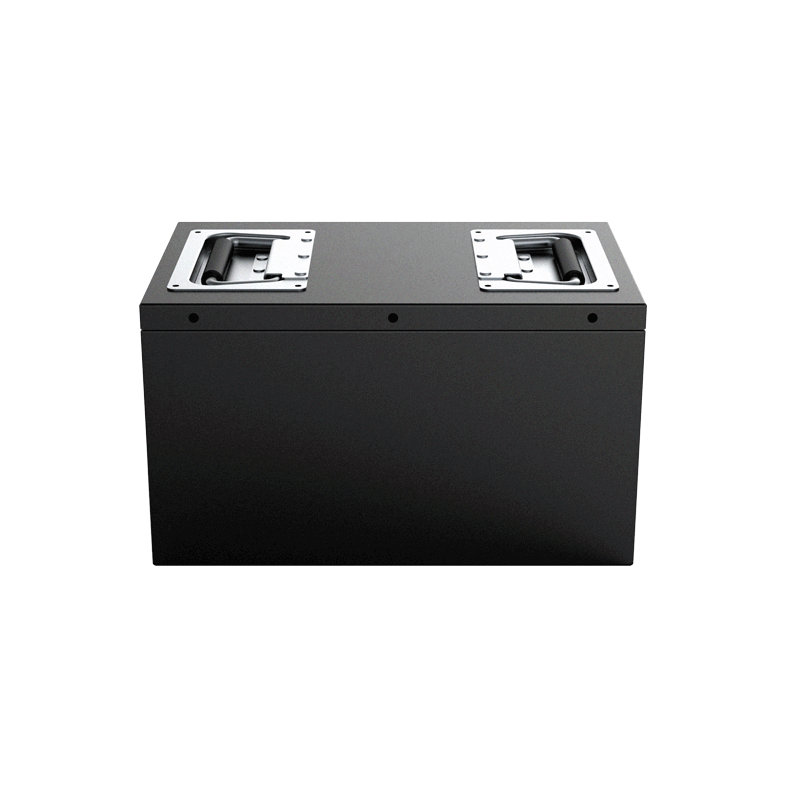

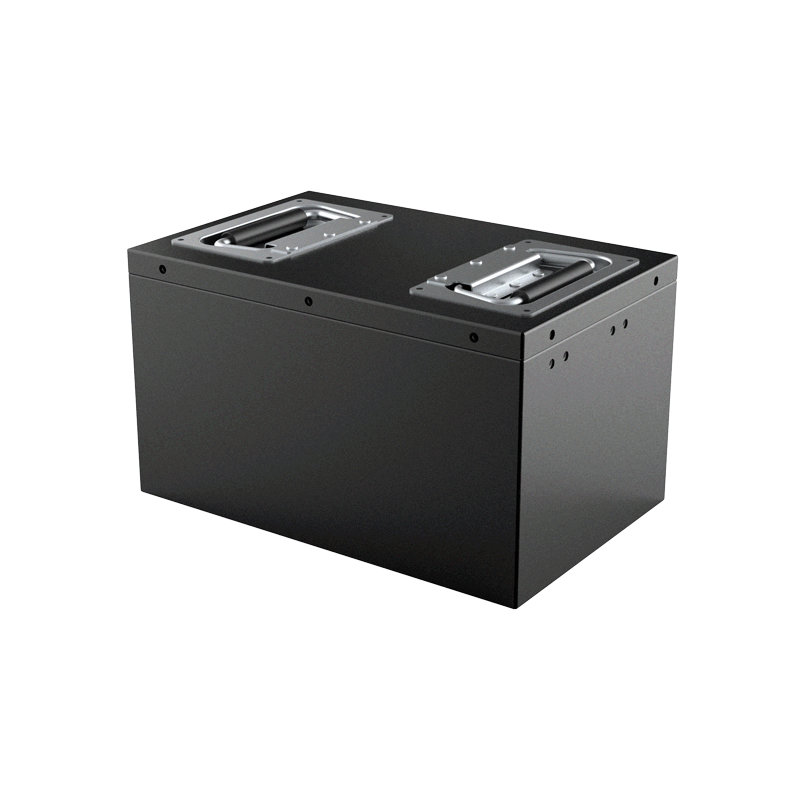

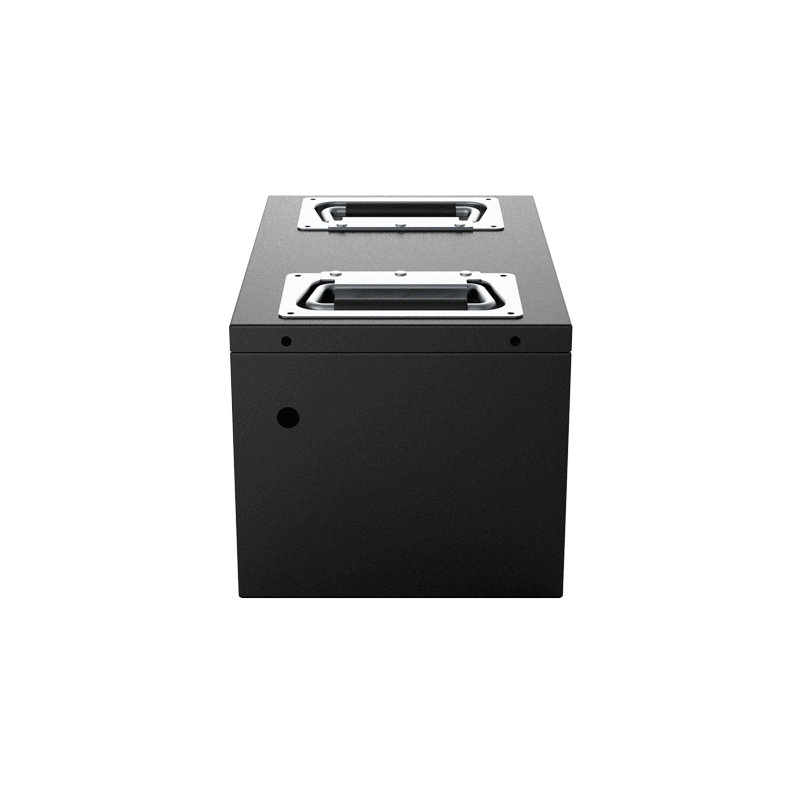

Battery Casing: Sheet metal casing
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, etc.
Application Field: Inspection robots, power monitoring robots, security robots, and other robotic applications
Product Features:
Sheet metal casing for increased reliability, robustness, and ease of installation, handling, and transportation of the battery.
Wire output: High-temperature resistant wires are used for output, ensuring reliable conductivity and high-temperature resistance.
Data Communication Management: Uses TI-SMBus software management chip with SMBus communication for precise data transmission and temperature control, minimizing safety hazards.
Excellent battery safety and discharge performance, with a long cycle life.
High cycle life of the battery pack.
Conforms to the values of low carbon, energy-saving, and environmental protection.
