Product Details:
Cell Model: JD973761EX/2400mAh/3.6V
Battery Configuration: JD973761EX/2400mAh/3.6V
Nominal Voltage: 3.6V
Nominal Capacity: 2400mAh
Charge Voltage: 4.2V (max)
Charge Current: ≤2.5A
Discharge Current: 3.0A
Pulse Discharge Current: 5.0A
Discharge Cut-off Voltage: 3.0V
Internal Resistance (finished product): ≤180mΩ
Battery Weight: 50g
Dimensions: 10.5×40.2×68.0mm
Charge Temperature: 0～45℃
Discharge Temperature: -20～55℃
Storage Temperature: 0～25℃
Smart Lithium Battery Protection: Short circuit protection, overcharge protection, over discharge protection, over current protection, etc.
Application Field: Handheld Terminals
- You're Here:

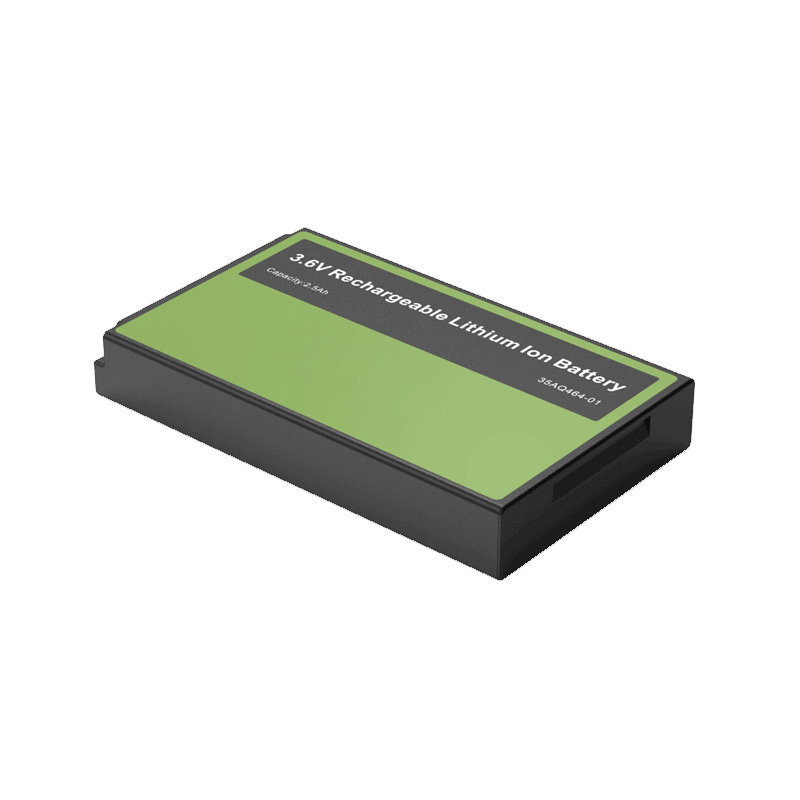

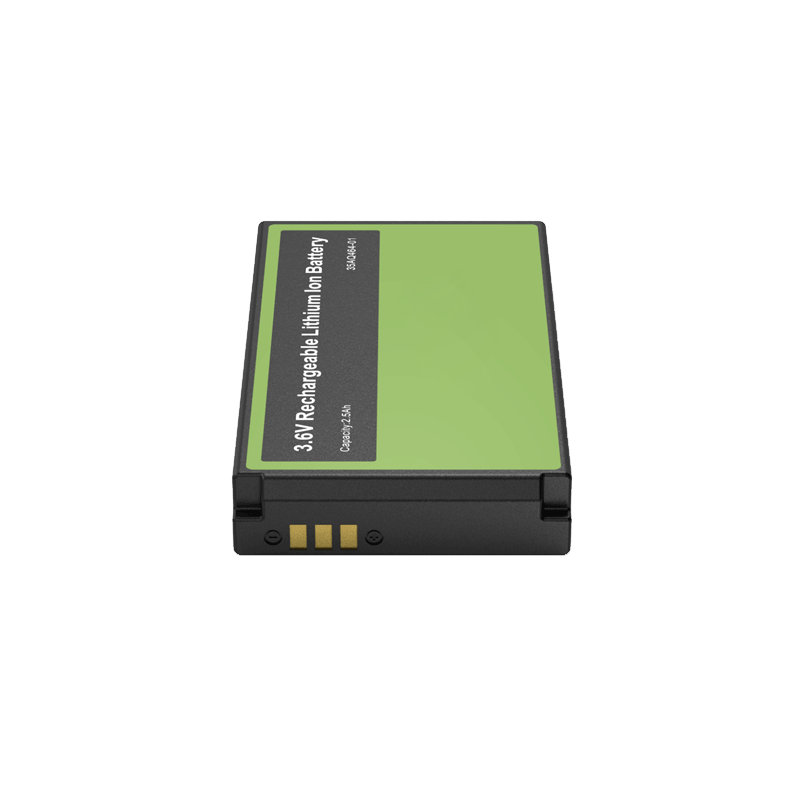

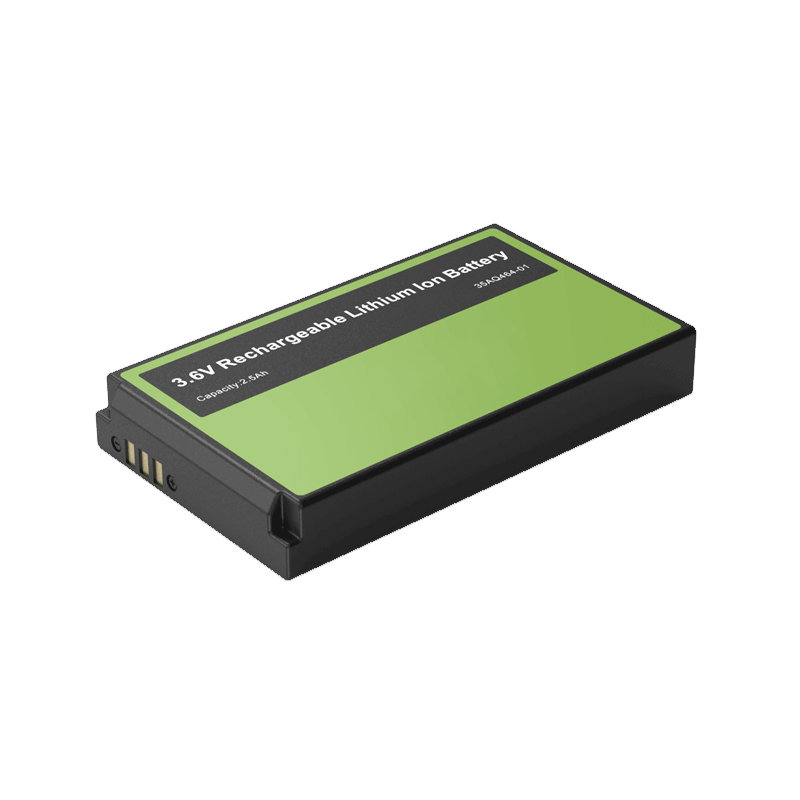

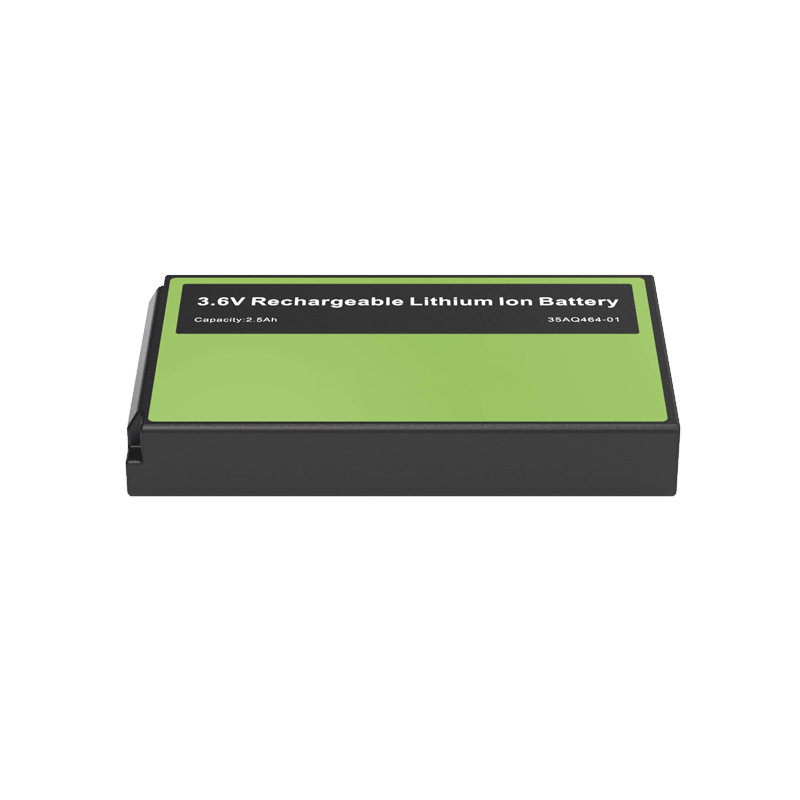

3.6V 2400mAh Explosion-proof Polymer Lithium Battery for Handheld Terminals
Nominal Voltage: 3.6V
Nominal Capacity: 2400mAh
Battery Size: 10.5×40.2×68.0mm
Charge Temperature: 0～45℃
Discharge Temperature: -20～55℃
Application: Handheld Terminals
For Energy Storage Solution Services, CONTACT US for details.
