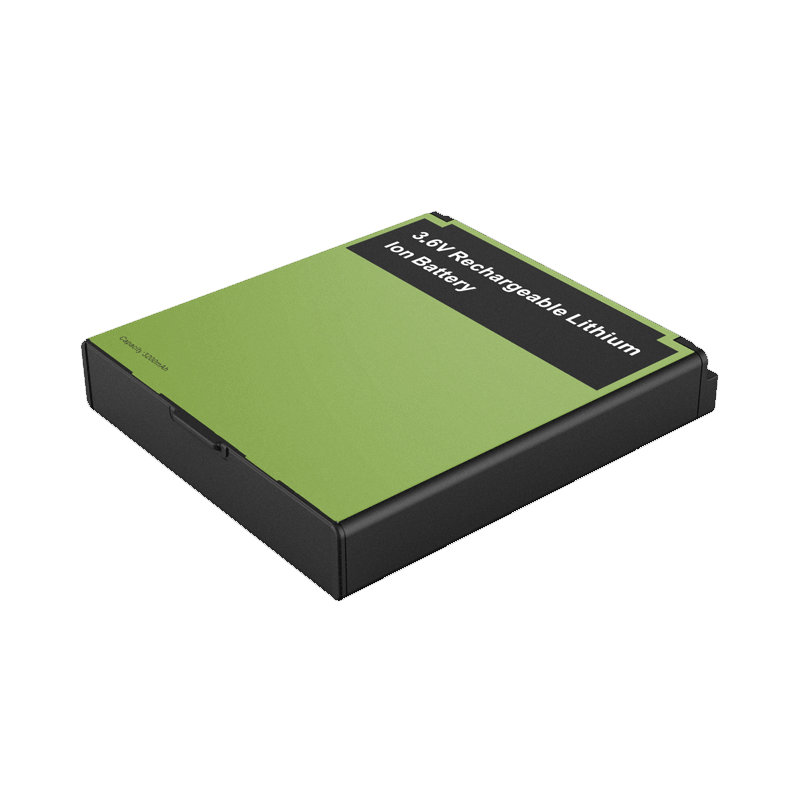

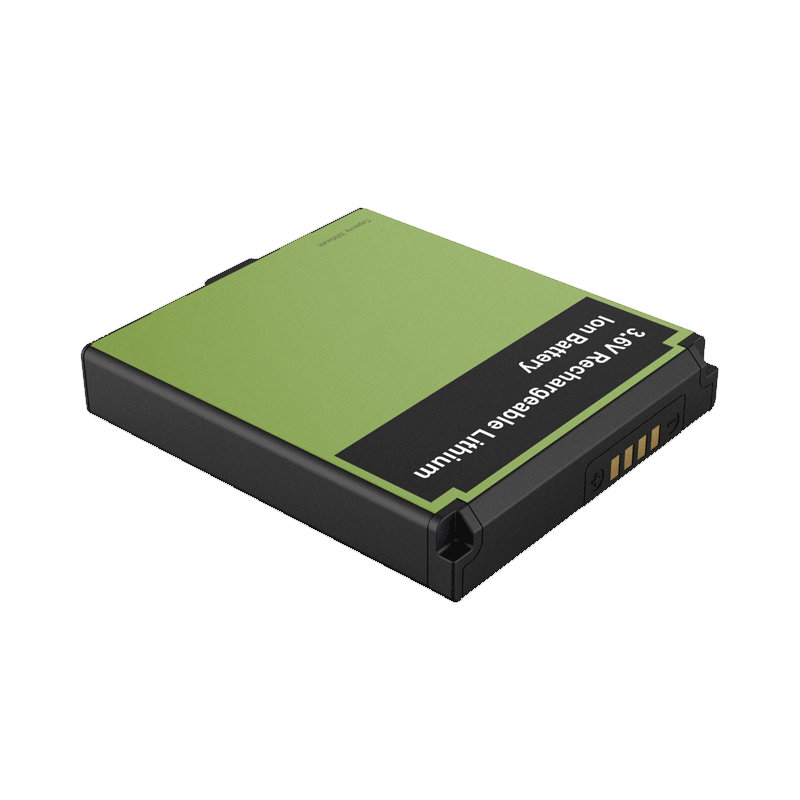

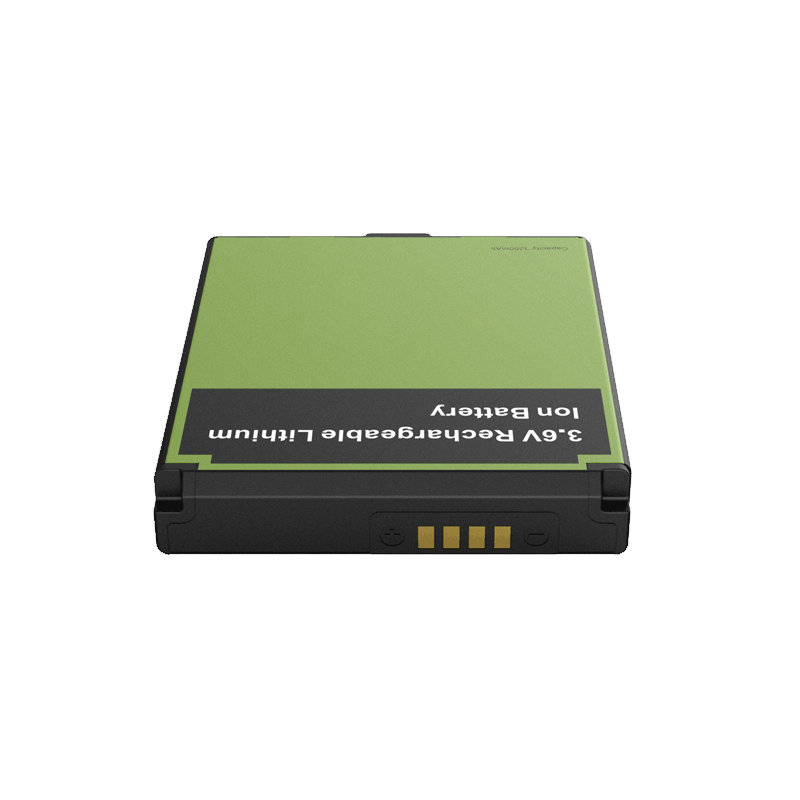

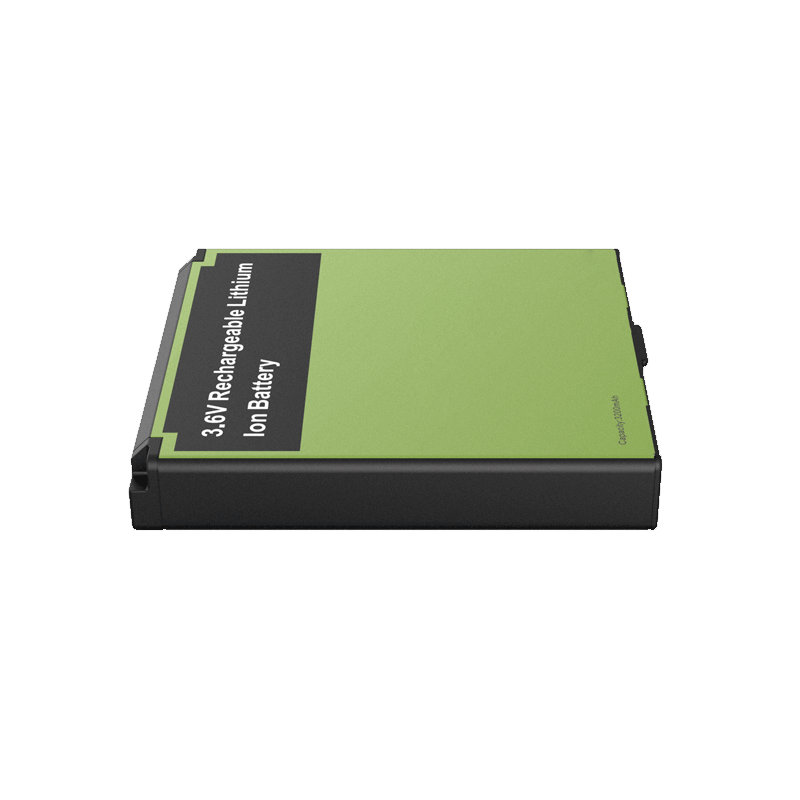

3.6V 3200mAh Explosion-proof Polymer Lithium Battery for Special Handheld Devices

Nominal Voltage: 3.6V
Nominal Capacity: 3200mAh
Battery Size: 63×56×10.8(±0.2mm)
Charge Temperature: 0~45℃
Discharge Temperature: -10~55℃
Application: Gas stations, mining, and other special environments

For Energy Storage Solution Services, CONTACT US for details.

Product Details:
Cell Model: LA505357FB/1600mAh/3.6V
Battery Configuration: LA505357FB-1S2P/3200mAh/3.6V
Nominal Voltage: 3.6V
Nominal Capacity: 3200mAh
Charge Voltage: 4.2V
Charge Current: ≤0.64A
Discharge Current: 1.6A
Pulse Discharge Current: 3.2A
Discharge Cut-off Voltage: 3.0V
Internal Resistance (finished product): ≤180mΩ
Battery Weight: 70g
Dimensions: 63×56×10.8(±0.2mm)
Charge Temperature: 0~45℃
Discharge Temperature: -10~55℃
Storage Temperature: -20~25℃
Battery Packaging: Plastic-coated steel structure, with additional stickers
Lithium Battery Protection: Short circuit protection, overcharge protection, over discharge protection, over current protection, etc.
Application Field: Suitable for use in gas stations, mining operations, and other special environments

Product Features:
Low self-discharge
Smart battery gauge, SMBus communication
High safety with explosion-proof design and large capacity
High cycle life, aligning with low carbon, energy-saving, and environmental protection principles
Excellent discharge performance under special operating conditions
Designed in accordance with GB3836 / Exib iiB T4 standards
