Product Details

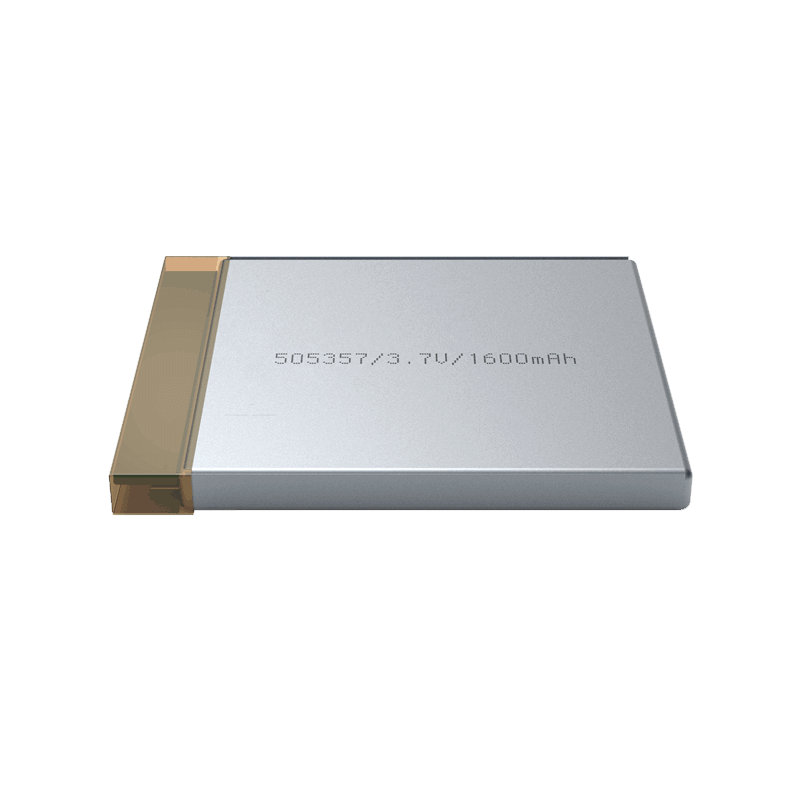

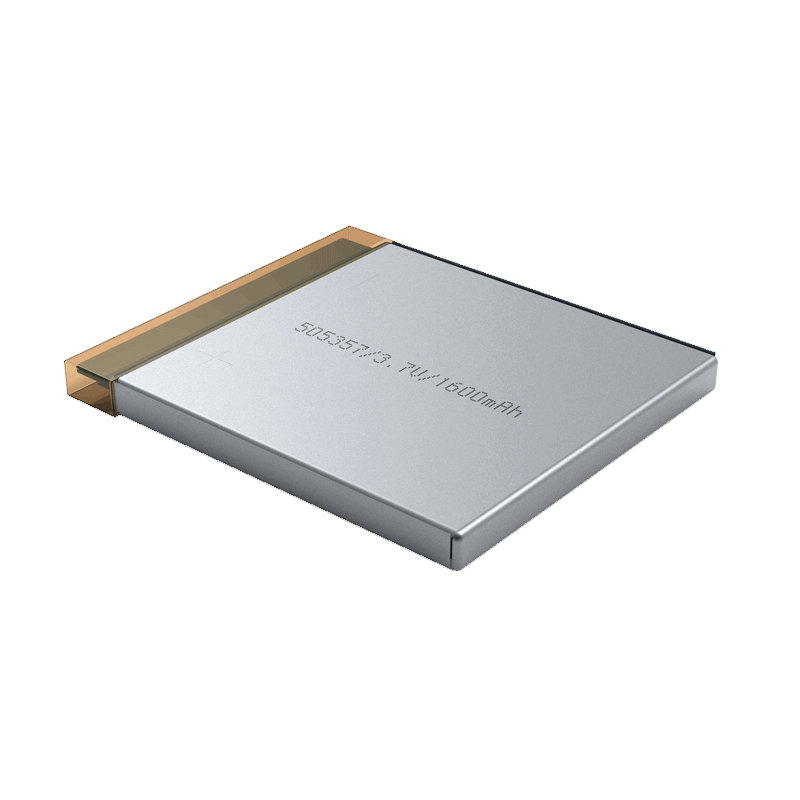

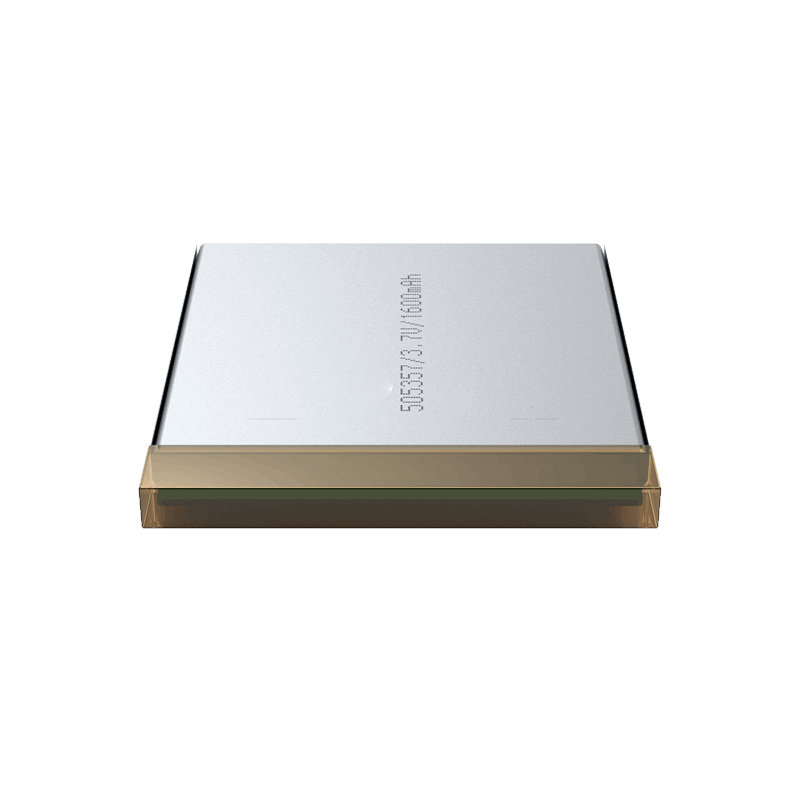

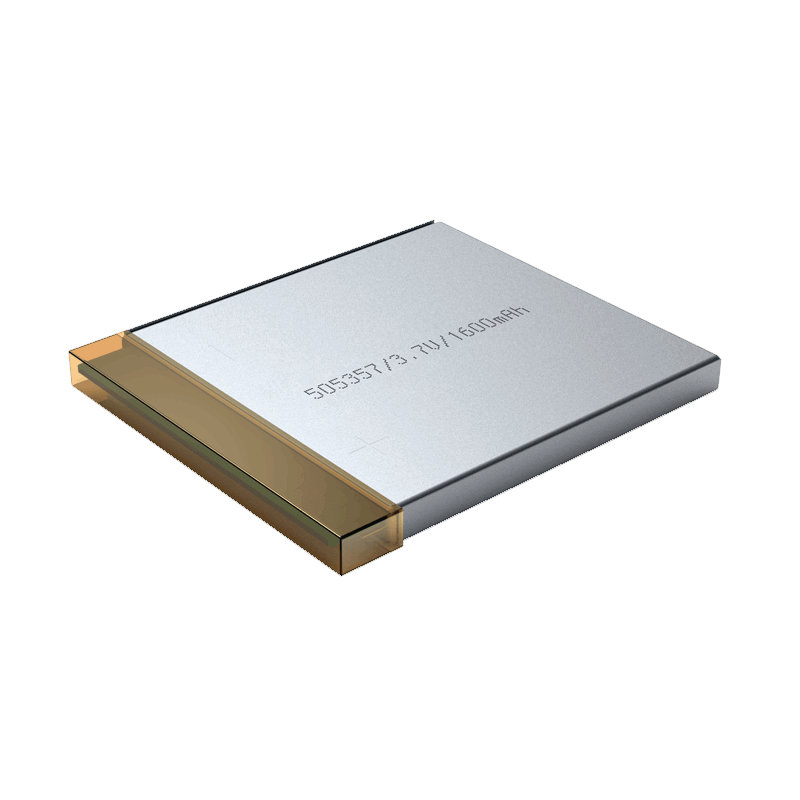

Cell Model: 505357-1600mAh-3.7V
Nominal Voltage: 3.7V
Nominal Capacity: 1600mAh
Charging Voltage: 4.2V
Charging Current: ≤800mA
Discharging Current: 190mA
Instantaneous Discharging Current: 190mA
Cut-off Discharging Voltage: 3V
Finished Product Internal Resistance: ≤300mΩ
Battery Weight: 50g
Product Dimensions: 62×53.5×6mm (L×W×H)
Charging Temperature: 0 to 45℃
Discharging Temperature: -20 to 55℃
Storage Temperature: -20 to 45℃
Battery Casing: Industrial grade
Lithium Battery Protection: Short-circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application Areas: Gas stations, gas plants, mining, etc.
Product Features
Low Self-Discharge: The battery has low power consumption when not in use, extending standby time.
Dual IC Protection Scheme: Features a 200mA quick blow fuse to prevent sparks during short circuits, enhancing safety.
Explosion-Proof Design: The battery pack is safe and has a large capacity, suitable for hazardous environments.
High Cycle Life: The battery pack has a long cycle life, aligning with low-carbon, energy-saving, and environmentally friendly values.
Excellent Discharging Performance: Performs well under specific usage conditions in specialized environments.
Design Reference: Product design follows the GB3836/Exib iiB T4 standard.
