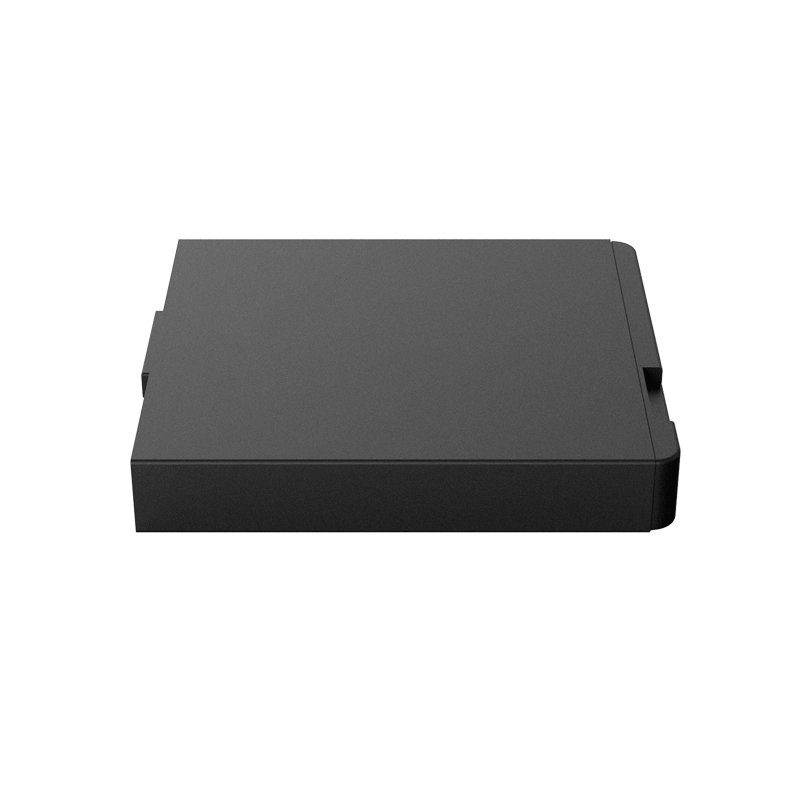

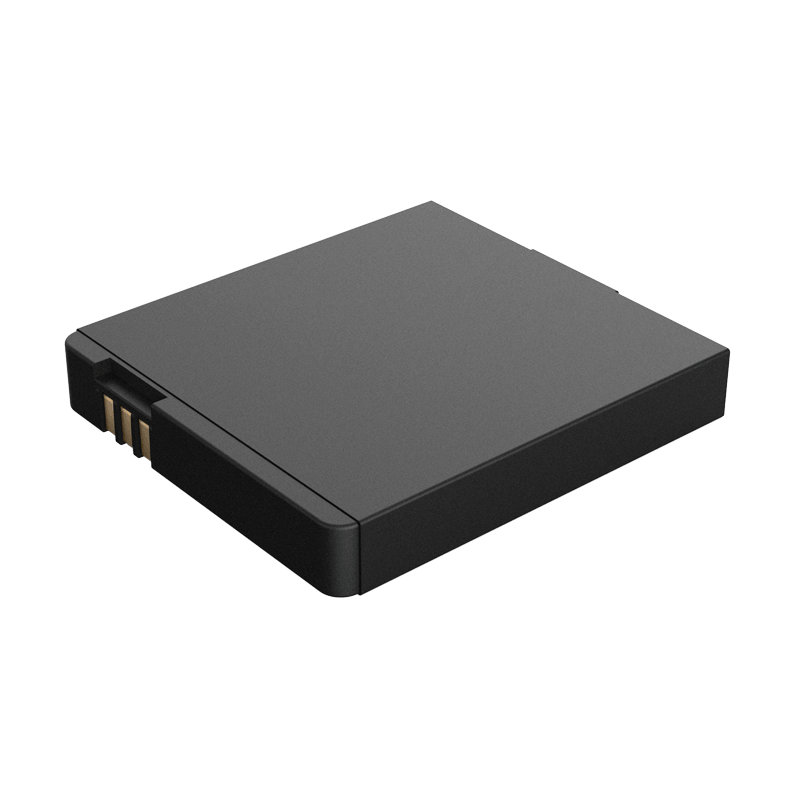

3.7V 780mAh 553436 Lithium Polymer Battery for Power System Decoder

Product Details
Cell Model: 553436-780mAh-3.7V
Battery Specification: 553436-1S1P-780mAh-3.7V
Nominal Voltage: 3.7V
Nominal Capacity: 780mAh
Charging Voltage: 4.2V
Charging Current: ≤0.78A
Discharging Current: 0.15A
Instant Discharging Current: 1.6A
Cut-off Voltage: 3.0V
Internal Resistance: ≤200mΩ
Battery Weight: 20g
Product Size: 40×36.6×6.8mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -25～60℃
Storage Temperature: -25～35℃
Battery Casing: Engineering plastic ABS+PC
Lithium Battery Protection: Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application Fields: Power system decoder, handheld tester, portable handheld device field

Product Features
Casing Material:Uses ABS+PC engineering plastic casing to enhance battery reliability and sturdiness.

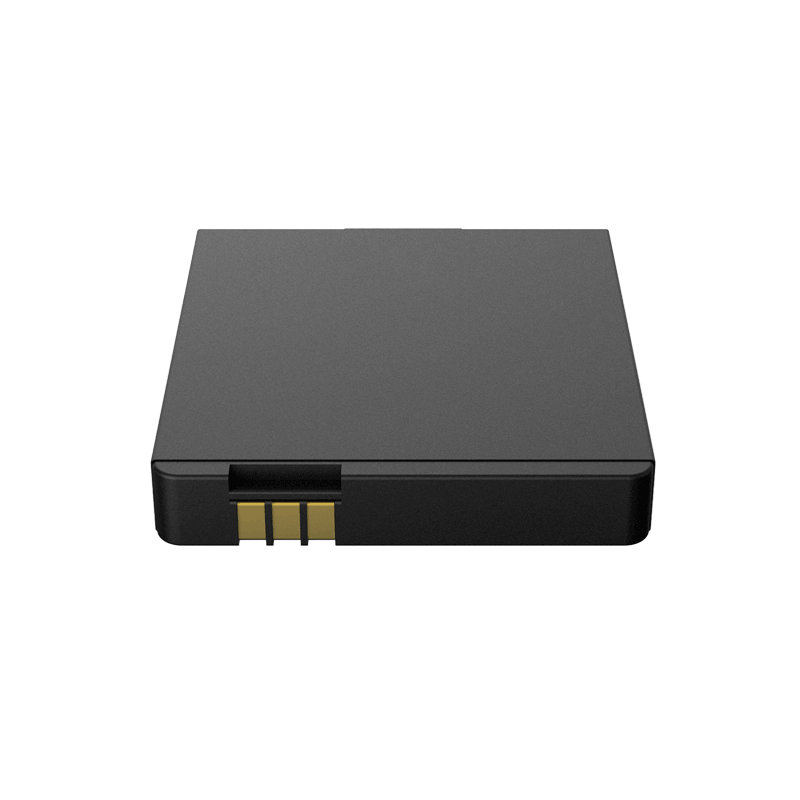

Metal Output Terminal:Adopts gold-plated spring output to increase electrical conductivity reliability.
Battery Protection Chip:Uses imported Seiko protection chip, which has high stability, high precision monitoring, and precise control, maximizing the elimination of safety hazards.
Battery Pack Safety:Good discharge performance and long cycle life.
Environmental Value:High cycle life, aligning with low carbon, energy-saving, and environmental protection values.
