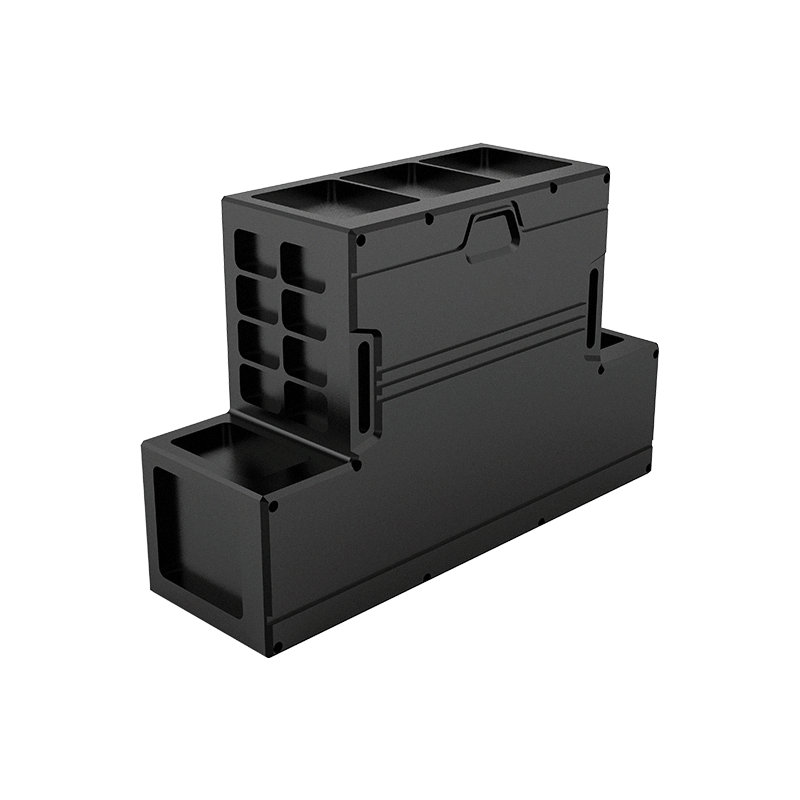

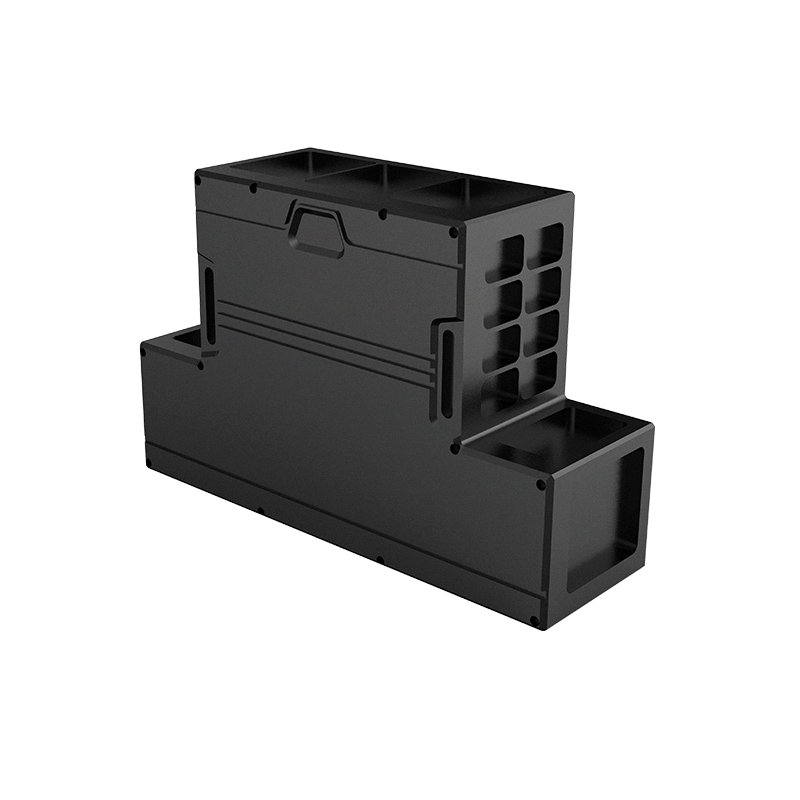

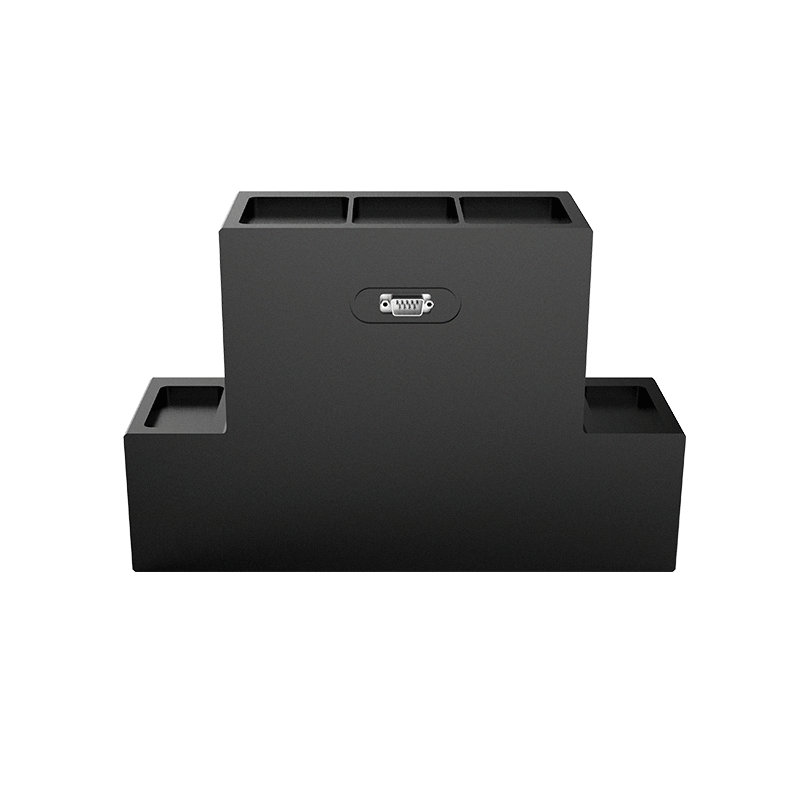

Product Details:
Cell Model: 18650/3500mAh/3.6V
Battery Configuration: 18650-13S6P/48V/20Ah
Nominal Voltage: 48V
Nominal Capacity: 20Ah
Charging Voltage: 54.6V
Charging Current: ≤10A
Discharging Current: 20A
Instantaneous Discharging Current: 40A
Discharging Cut-off Voltage: 32.5V
Finished Product Internal Resistance: ≤200mΩ
Battery Weight: 4Kg
Product Size: 214×180×149mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -20～55℃
Storage Temperature: -20～45℃
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Balancing, with CAN communication, etc.
Application Field: Industrial robots
Product Features:
Current: Maximum sustainable discharge of 60A.
Data Communication Management: Uses imported software management chip with CAN communication function for precise data transmission and precise temperature control, minimizing safety hazards.
Cell Characteristics: Uses high-capacity imported cells with a single cell capacity of 3500mAh, ensuring safety and reliability.
High cycle life of the battery pack.
Conforms to the values of low carbon, energy-saving, and environmental protection.
