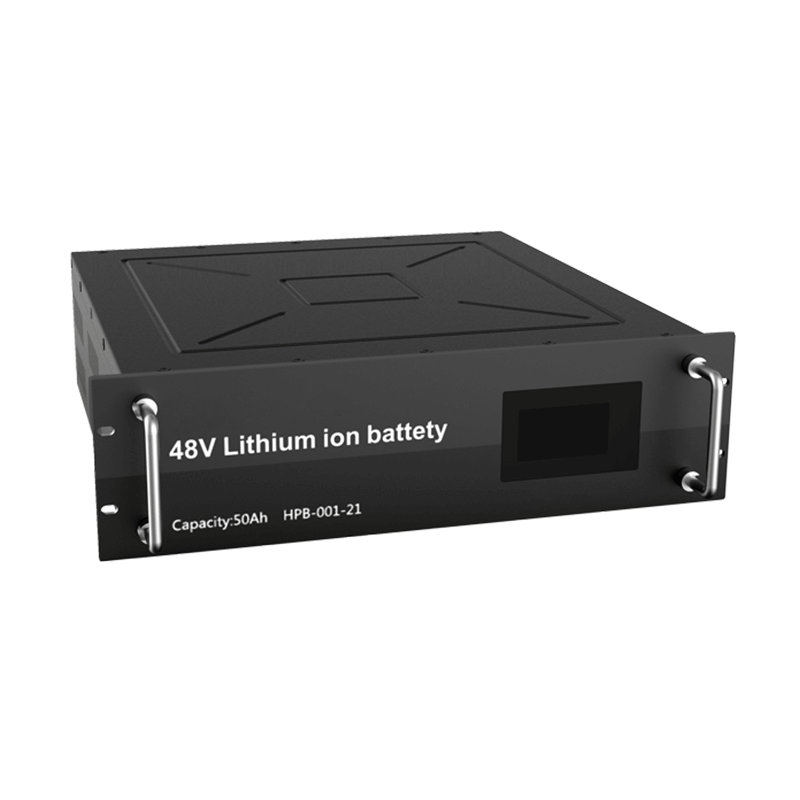

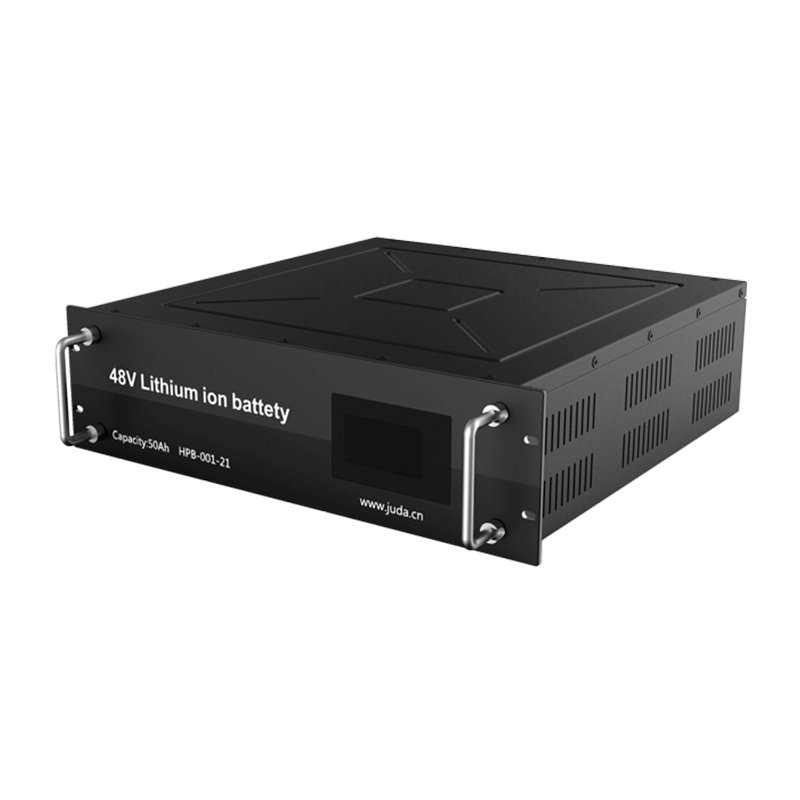

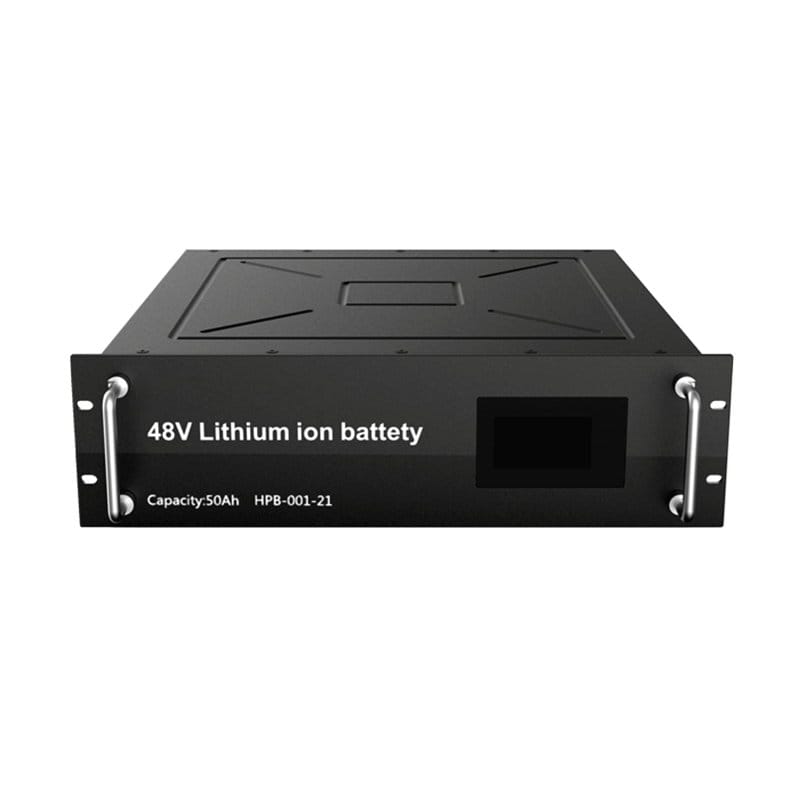

48V 50Ah 26650 Photovoltaic Energy Storage Lithium Iron Phosphate Battery

Product Details:
Cell Model: 26650/3.2V/3.2Ah
Battery Configuration: 26650/15S16P/48V/50Ah
Nominal Voltage: 48V
Nominal Capacity: 50Ah
Charging Voltage: 54.75V
Charging Current: ≤10A
Discharging Current: 10A
Instantaneous Discharging Current: 40A
Discharging Cut-off Voltage: 41.25V
Finished Product Internal Resistance: ≤200mΩ
Battery Weight: 30Kg
Product Size: 451×415×133mm (Max)
Charging Temperature: 0～45°C
Discharging Temperature: -20～60°C
Storage Temperature: -20～40°C
Temperature Protection: 65°C±5°C
Battery Casing: Cold-rolled sheet metal
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Temperature Protection, Balancing, etc.
Application Field: Photovoltaic energy storage

Product Features:
Battery capacity display: The battery capacity is displayed on the screen, allowing for intuitive understanding of the battery status.
Shock and dust resistance: Made of cold-rolled sheet metal with powder coating treatment, and filled with shock-resistant structure for earthquake and dust resistance.

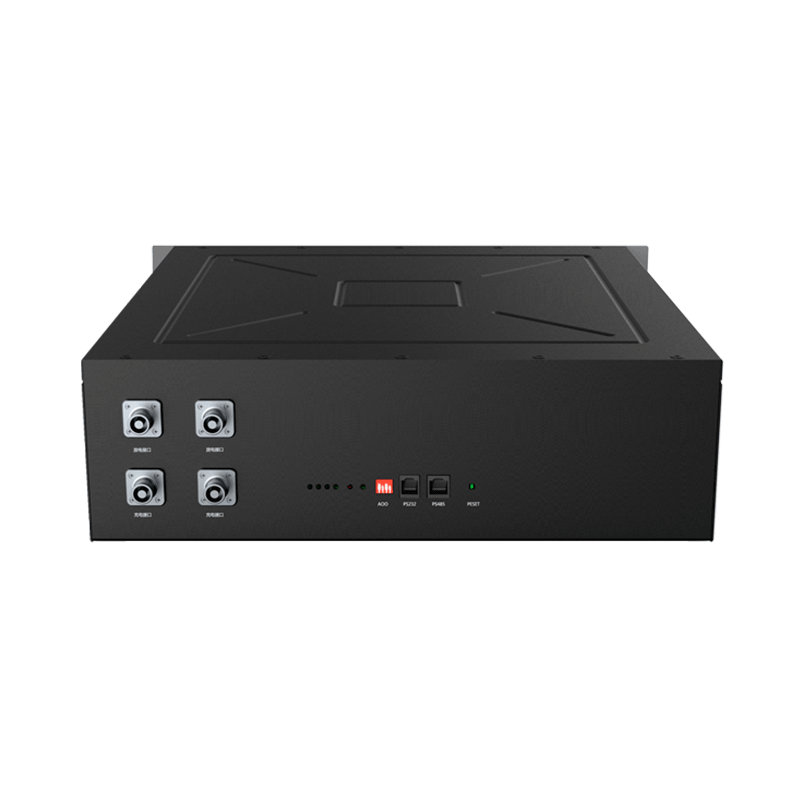

Communication interface: Uses RS485 communication protocol to read battery voltage, current, temperature, capacity, and other information.
Data Communication Management: Uses software management chip for precise data transmission and precise temperature control, minimizing safety hazards.
Battery pack safety with temperature probe: The battery pack is equipped with a temperature probe and automatically activates protection if the temperature exceeds the set limit.
High cycle life of the battery pack.
Conforms to the values of low carbon, energy-saving, and environmental protection.
