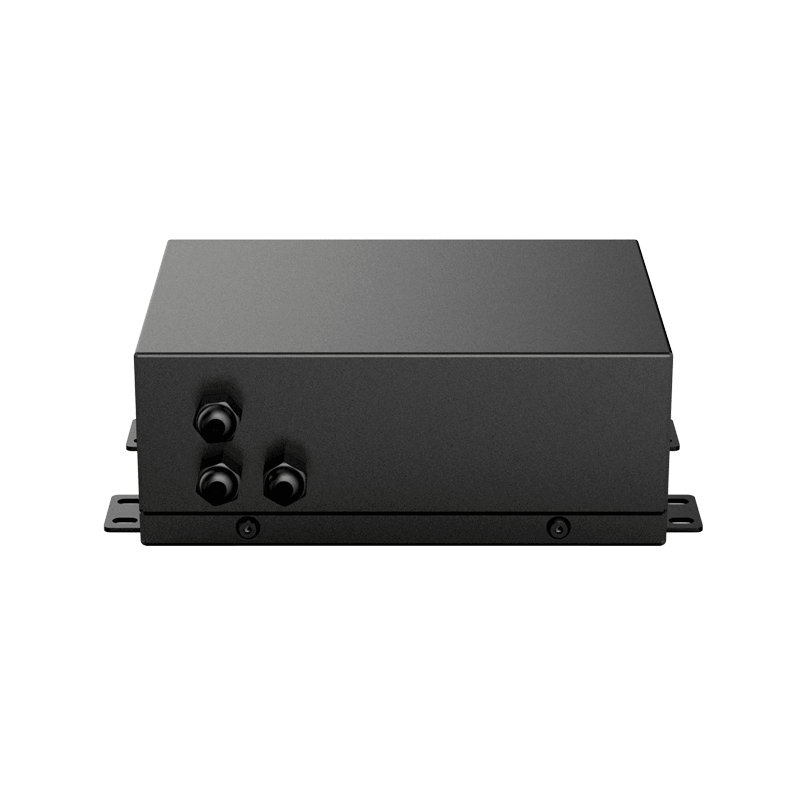

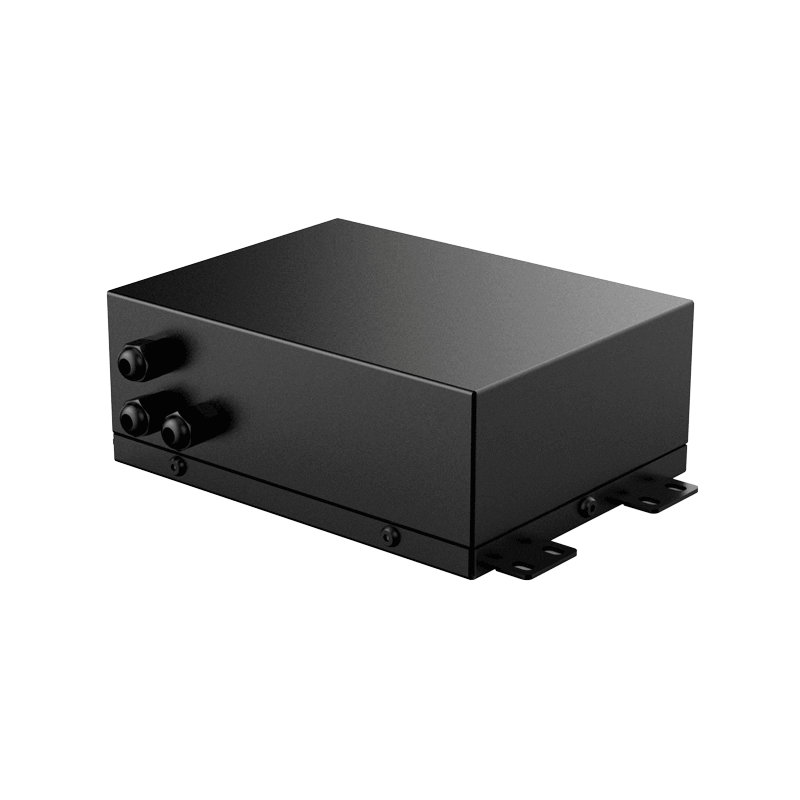

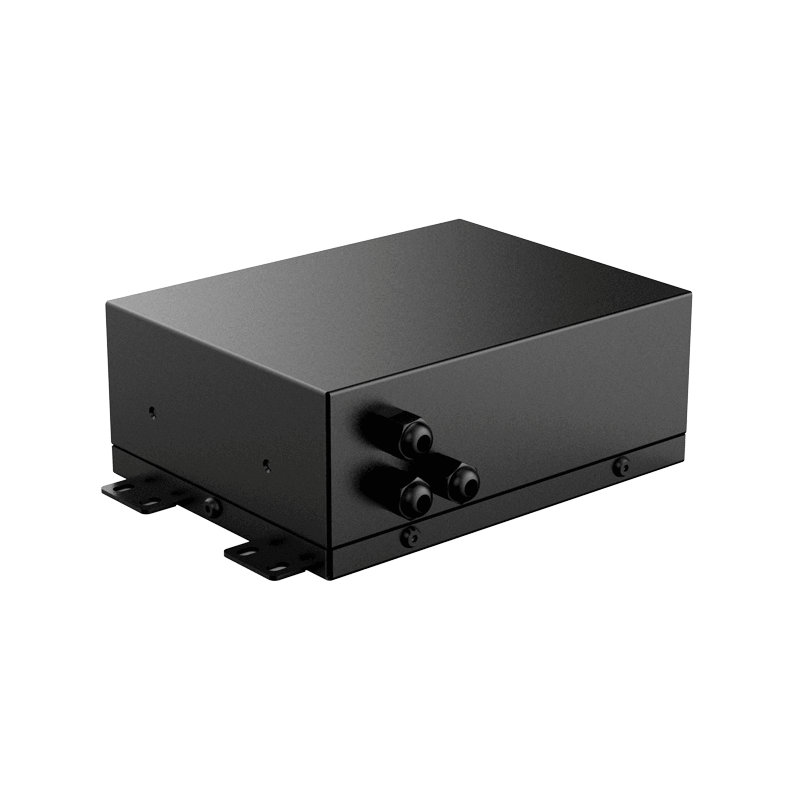

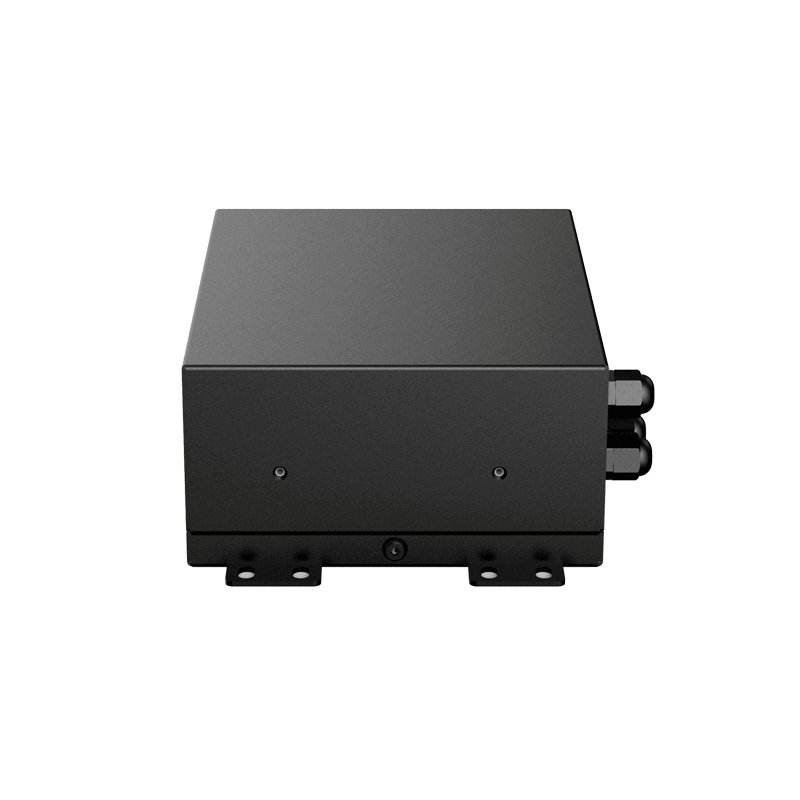

51.2V 2500mAh 26650 Lithium Iron Phosphate Battery for Monitoring Equipment

Nominal Voltage: 51.2V
Nominal Capacity: 2500mAh
Battery Dimensions: 204×160×80mm
Charging Temperature: 0~45℃
Discharging Temperature: -20~60 ℃
Application: Power supply for monitoring equipment

For Energy Storage Solution Services, CONTACT US for details.

Product Details
Cell Model: 26650/3.2V/2500mAh
Battery Configuration: 16S1P (16 cells in series, 1 cell in parallel)
Nominal Voltage: 51.2V
Nominal Capacity: 2500mAh
Charging Voltage: 58.4V
Charging Current: ≤2.5A
Discharging Current: 10A
Instantaneous Discharge Current: 20A
Discharge Cutoff Voltage: 40V
Internal Resistance: ≤150mΩ
Battery Weight: 4.1Kg
Product Dimensions: 204×160×80mm
Charging Temperature: 0~45℃
Discharging Temperature: -20~60℃
Storage Temperature: -20~45℃
Temperature Protection: 65℃±5℃
Battery Case: Sheet metal casing
Communication Protocol: RS485 MODBUS
Lithium Battery Protection: Protection against short circuit, overcharge, over-discharge, overcurrent, temperature protection, balancing, reverse polarity protection, etc.

Product Features
Low Self-discharge: Minimal self-discharge rate ensures longer shelf life.
Built-in Temperature Protection: Enhances safety by monitoring and regulating temperature.
Long Cycle Life: Designed for extended cycle life, meeting the demands of sustainability and environmental protection.
485 Communication: Includes communication capabilities using RS485 MODBUS protocol for monitoring battery parameters remotely.
High Safety Standards: Comprehensive protection features ensure safe operation and longevity of the battery pack.
