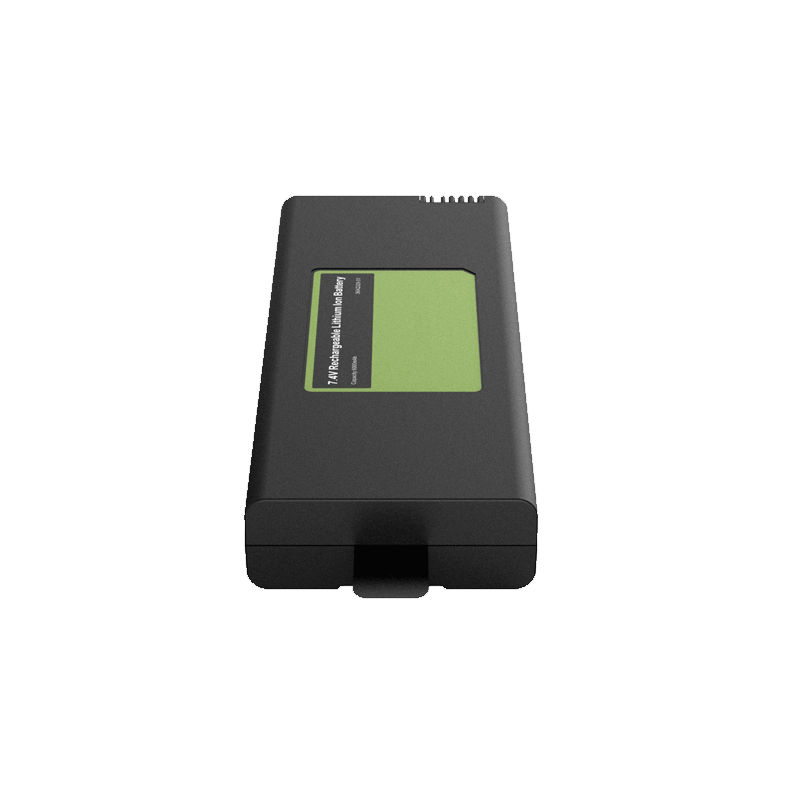

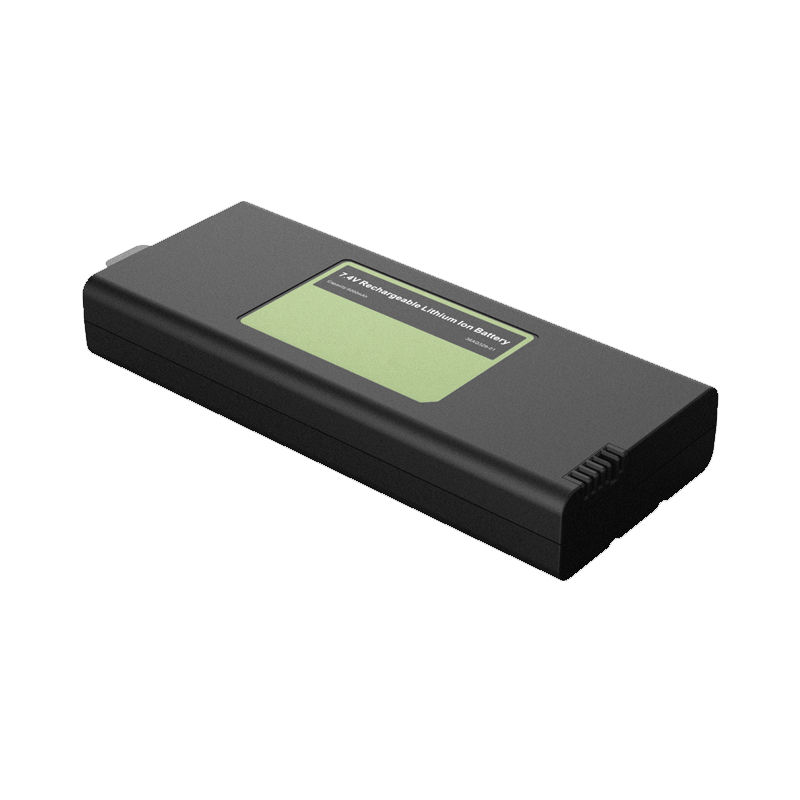

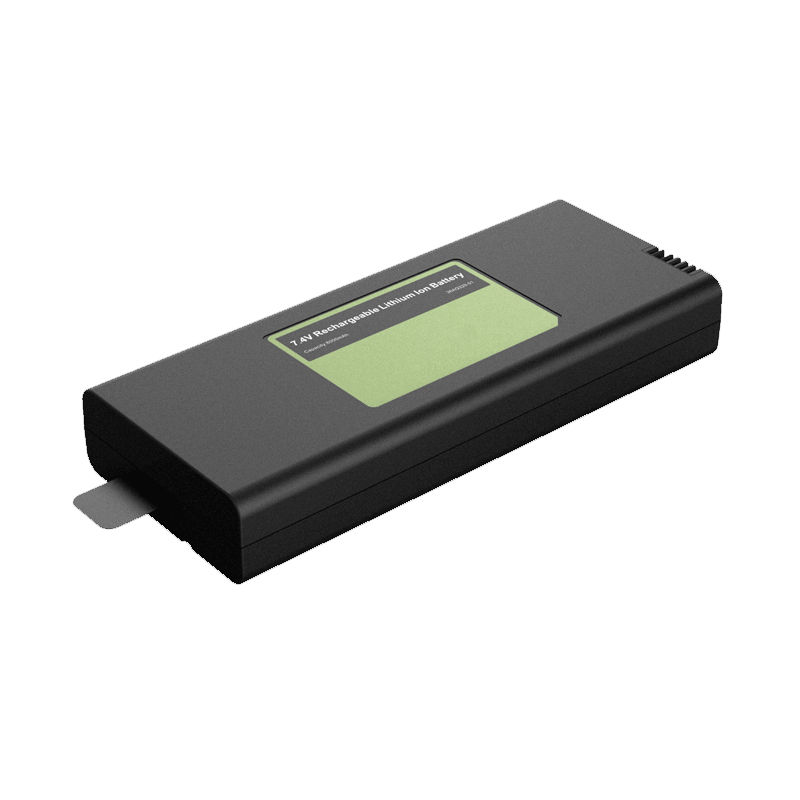

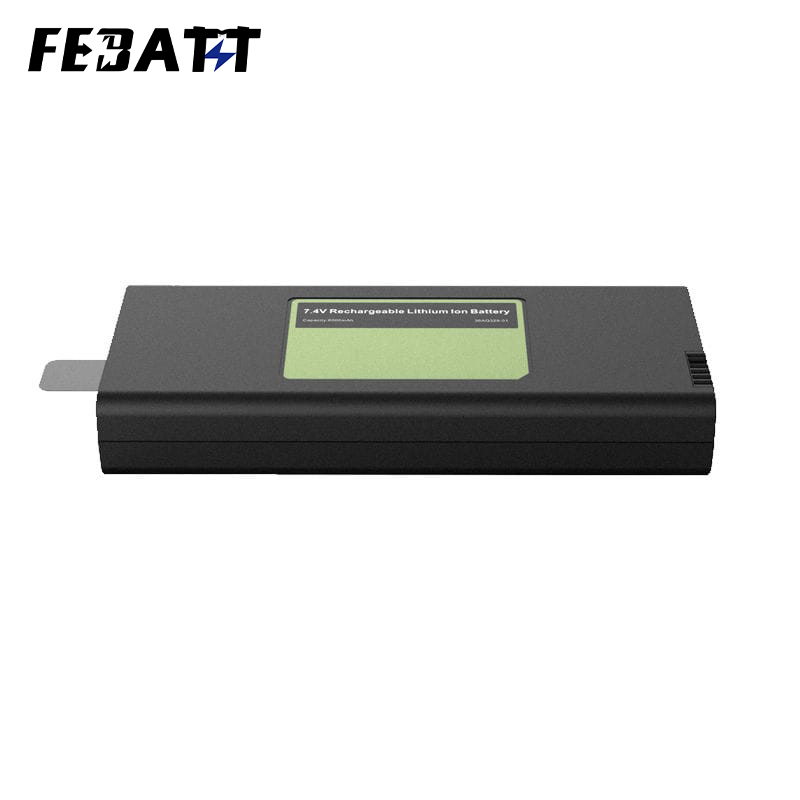

18650 7.4V 6000mAh Low Temperature Lithium Battery for Navigation Terminal

Cell Model: 18650-2200mAh-3.7V
Battery Specification: 18650-2S3P-6000mAh-7.4V
Product Dimensions: 144*59.8*22.5mm (Max)
Nominal Voltage: 7.4V
Nominal Capacity: 6000mAh
Charging Voltage: 8.4V
Charging Current: ≤3A
Discharging Current: 1.2A
Instantaneous Discharge Current: 3A
Discharge Cutoff Voltage: 5.0V
Internal Resistance: ≤180mΩ
Battery Weight: 350g
Charging Temperature: 0～45℃
Discharging Temperature: -40～60℃
Storage Temperature: -20～35℃
Battery Case: ABS+PC case
Lithium Battery Protection: Short-circuit protection, overcharge protection, over-discharge protection, over-temperature protection, over-current protection, ESD protection, etc.
Application: Navigation equipment, low temperature discharge equipment

Product Features

ABS+PC Case:Enhances battery reliability and durability.
Connector Output:Uses gold-plated spring contacts to improve conductivity reliability.
Data Communication Management:Uses TI-SMBus software management chip for accurate data transmission and precise temperature control, maximizing safety.
Low Temperature Performance:Supports discharge at -40℃.
Battery Pack:Safe with good discharge performance and long cycle life, aligning with low-carbon, energy-saving, and environmental protection values.
