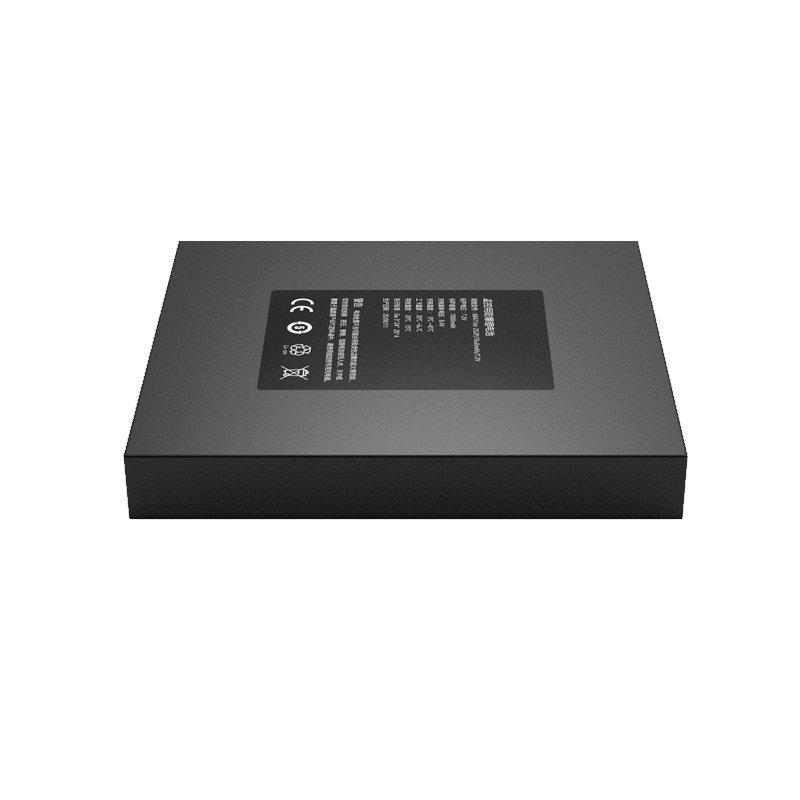

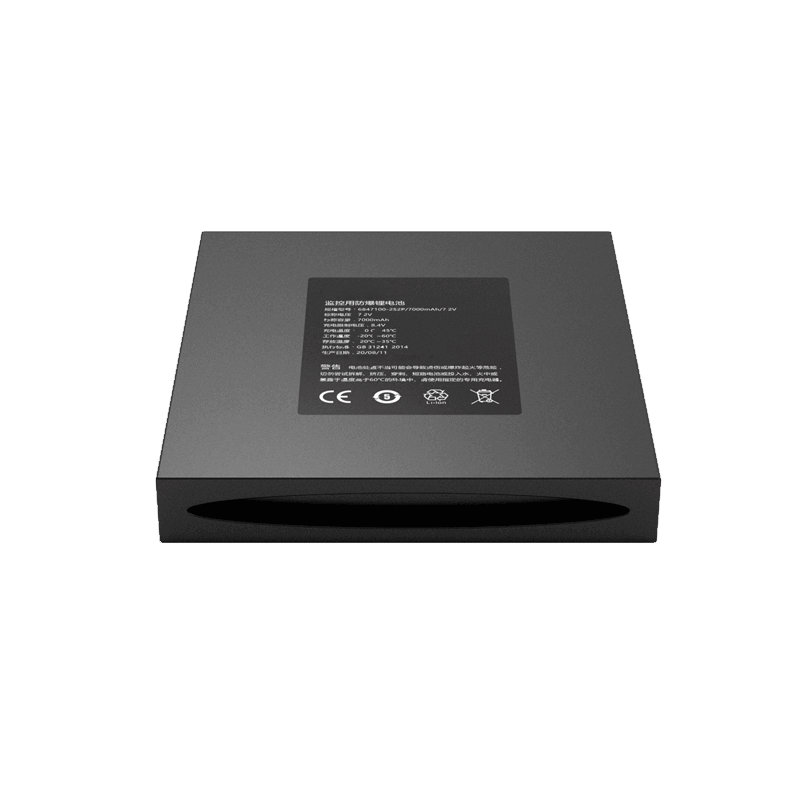

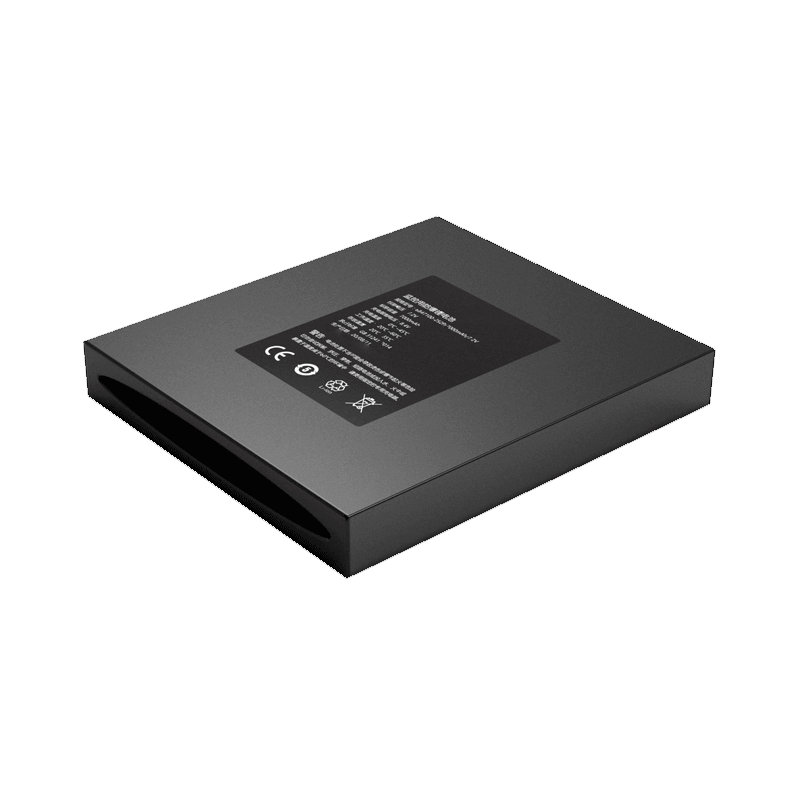

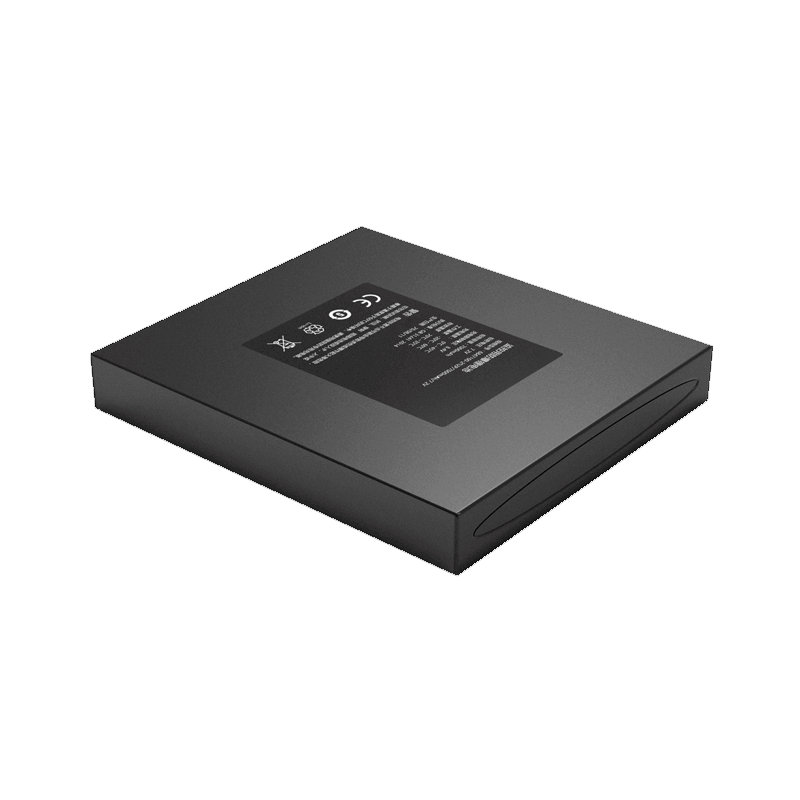

7.2V 7000mAh Explosion-Proof Ternary Lithium Battery for Monitoring Applications

Product Details
Cell Model: 6847100-3500mAh-3.6V
Battery Specification: 6847100-2S2P-7000mAh-7.2V
Product Dimensions: 115×100×20mm (Max)
Nominal Voltage: 7.2V
Nominal Capacity: 7000mAh
Charging Voltage: 8.4V
Charging Current: ≤1.2A
Discharging Current: ≤1.9A
Cut-off Discharging Voltage: 6.0V
Finished Product Internal Resistance: ≤180mΩ
Battery Weight: 360g
Charging Temperature: 0～45℃
Discharging Temperature: -20～60℃
Storage Temperature: -20～35℃
Battery Enclosure: Blue PVC heat shrink film
Lithium Battery Protection: Short-circuit protection, overcharge protection, over-discharge protection, overcurrent protection, ESD protection, etc.
Application Areas: Suitable for monitoring equipment and portable explosion-proof devices

Product Features
Explosion-Proof Design: Complies with GB3836/Exib iiB T4 explosion-proof testing standards, ensuring safety in hazardous environments.
Battery Protection Management: Utilizes imported protection chips for high stability, precise monitoring, and control to minimize safety risks.
High Safety and Performance: Provides excellent discharge performance and long cycle life.
Environmental Benefits: Conforms to low-carbon, energy-saving, and environmental protection principles.
Blue PVC Heat Shrink Film: Simplifies and enhances reliability of installation.
JST Connector Line Output: Enhances conductivity reliability during connection.
