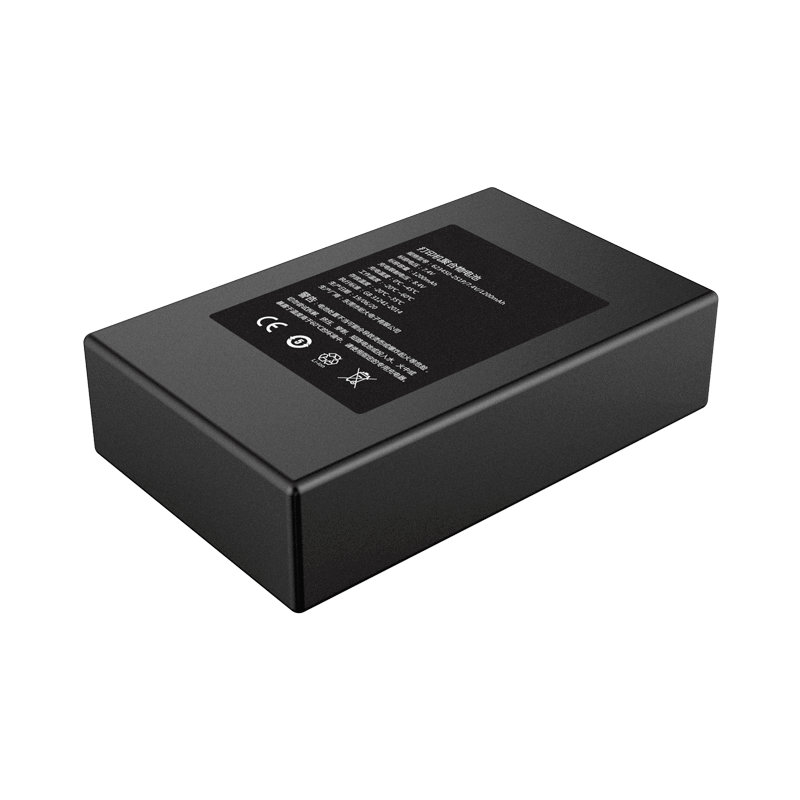

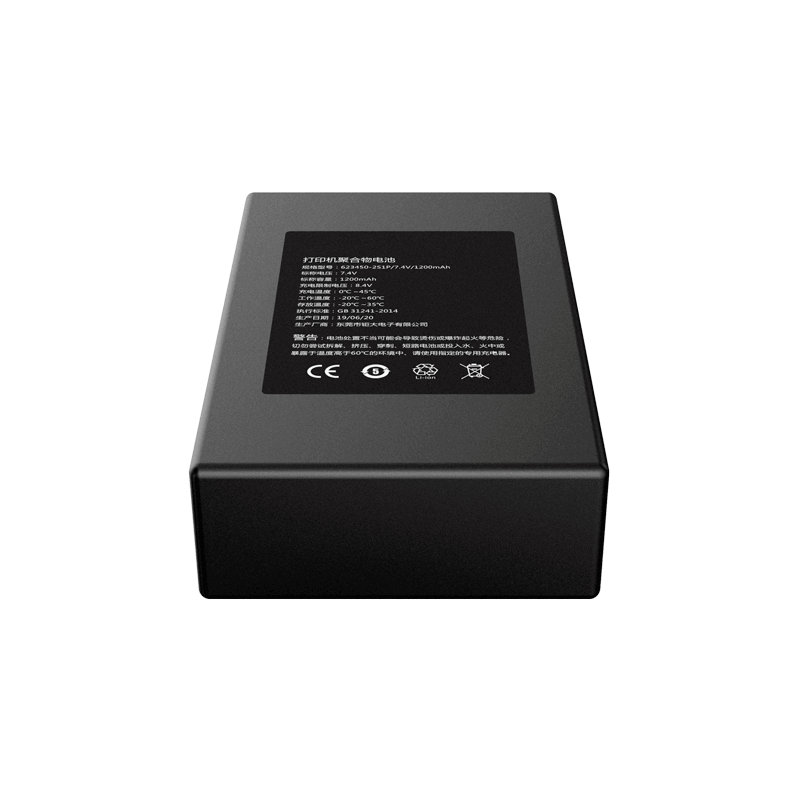

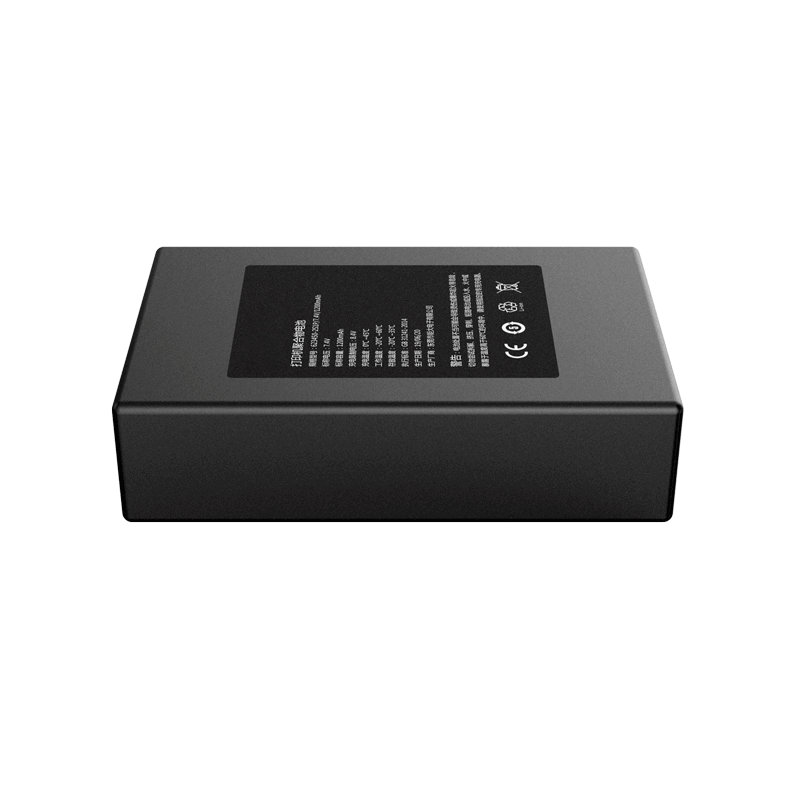

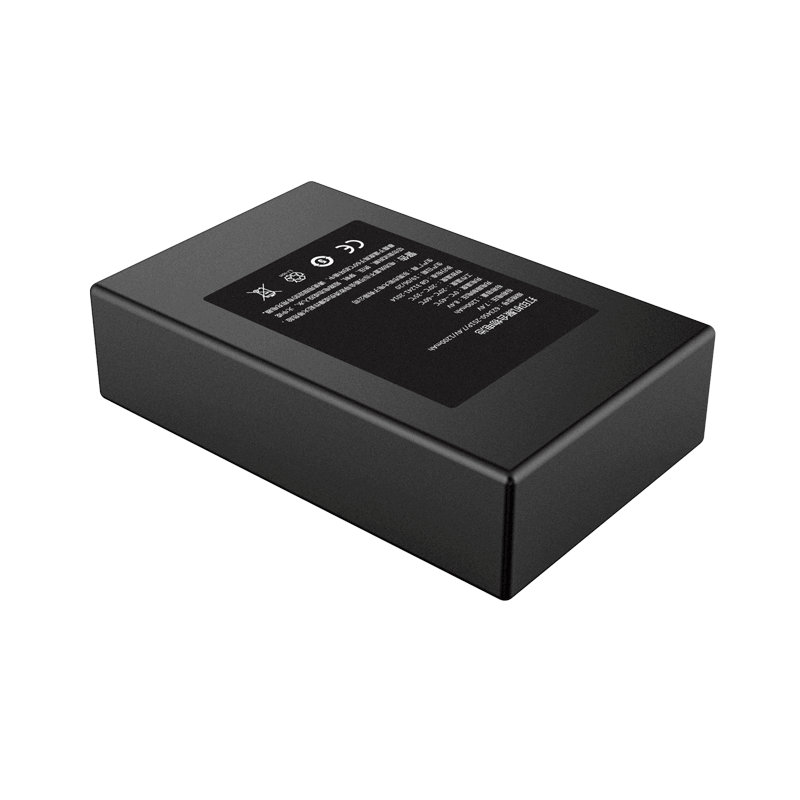

7.4V 1200mAh 623450 Polymer Battery for Printers

Product Details
Cell Model: 623450/3.7V/1200mAh
Battery Specification: 623450-2S1P/7.4V/1200mAh
Nominal Voltage: 7.4V
Nominal Capacity: 1200mAh
Charging Voltage: 8.4V
Charging Current: ≤1.2A
Discharging Current: 0.6A
Instant Discharging Current: 2.4A
Cut-off Voltage: 6V
Internal Resistance: ≤200mΩ
Battery Weight: 0.05Kg
Product Size: 54.5×34.5×14mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -20～60℃
Storage Temperature: -20～35℃
Battery Enclosure: PVC
Lithium Battery Protection: Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application Fields: Commercial financial devices

Product Features
Packaging:PVC packaging provides a simple and reliable solution, ensuring easy integration into commercial and financial devices.
Output Terminals:Uses national standard wire output method with soldered connections to ensure reliable conductivity.
Protection Chip:Incorporates imported Seiko protection chips and low internal resistance FET MOSFETs, offering high stability, precise monitoring, and control, thereby maximizing safety.
Battery Safety:The battery pack is safe with good discharge performance and long cycle life.
Environmental Value:High cycle life that aligns with low carbon, energy-saving, and environmental protection values.
