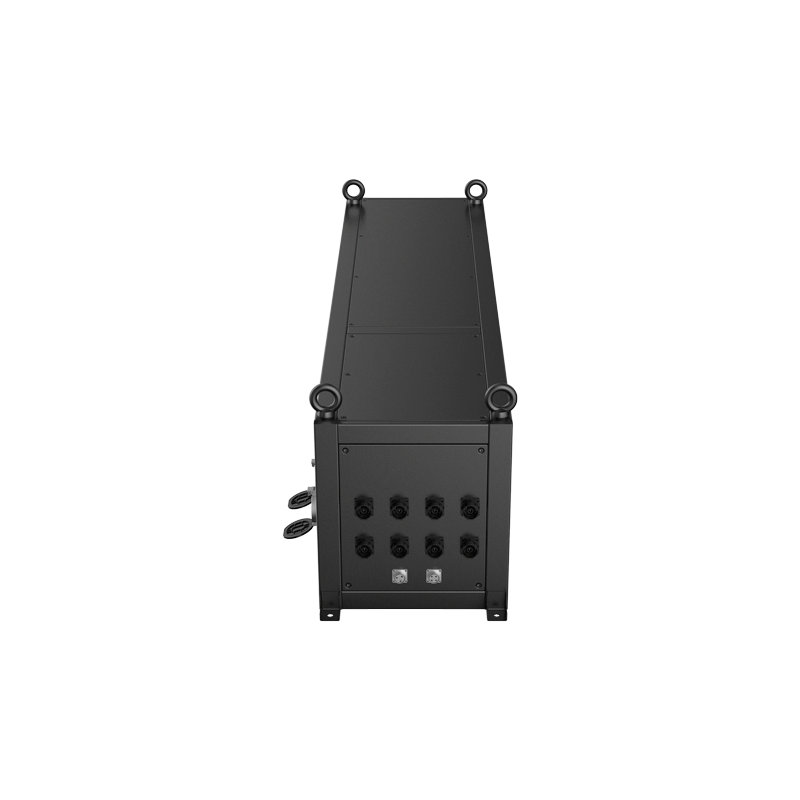

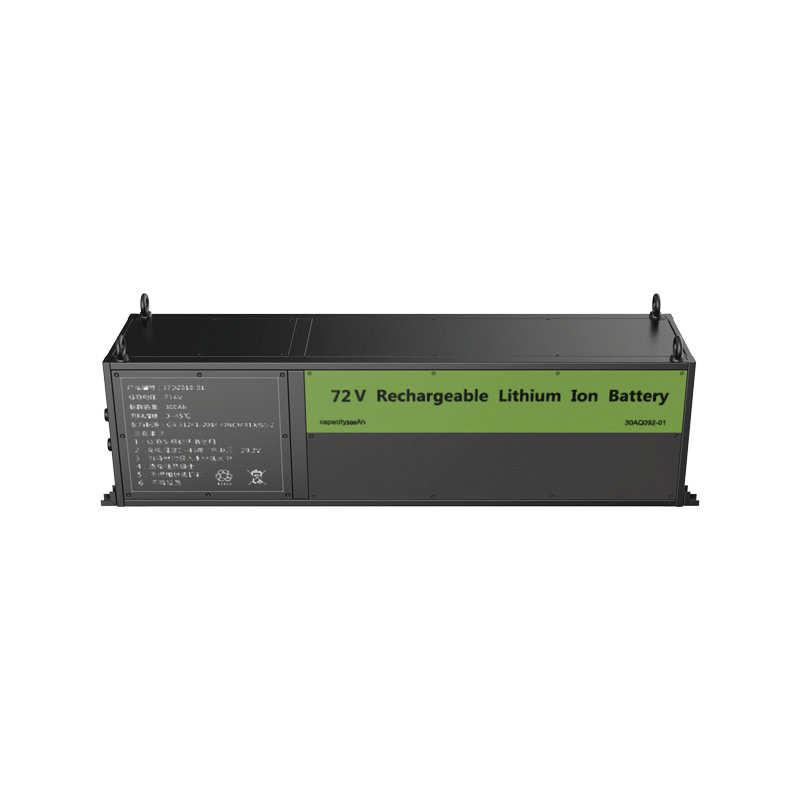

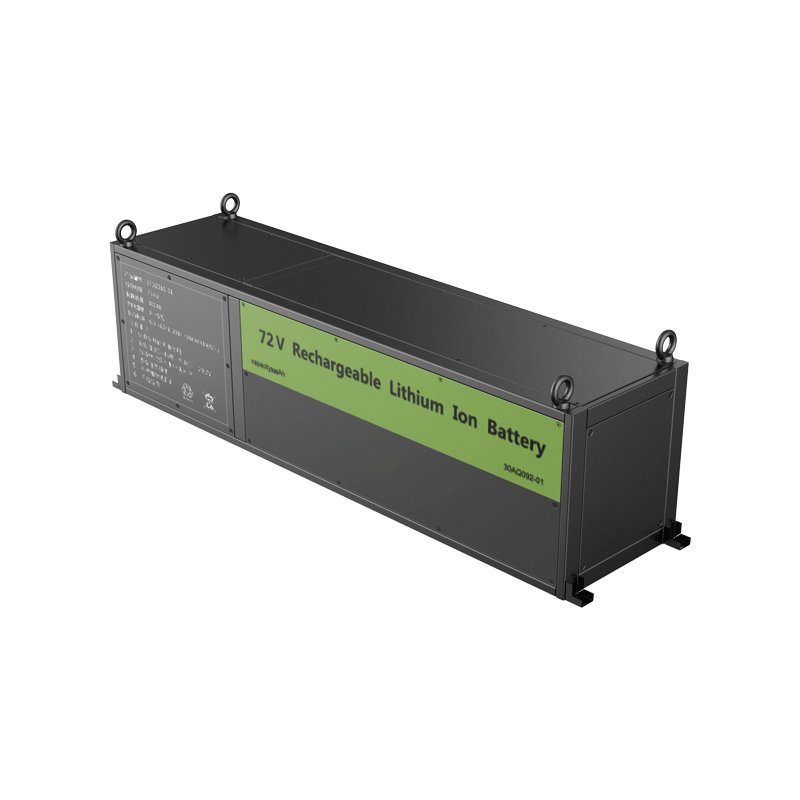

72V 300Ah Wide Temperature Lithium Titanate Power Battery for Sightseeing Trains, with CAN Communication Management
Product Details
Battery Cell Model: BLDB2R4025C – 2.3V/25Ah
Battery Specification: 32S20P/72V/300Ah
Nominal Voltage: 73.6V
Nominal Capacity: 300Ah
Charging Voltage: 89.6V
Charging Current: ≤500A
Discharging Current: 700A
Instantaneous Discharge Current: 1000A
Discharge Cut-off Voltage: 51.2V
Internal Resistance of Finished Product: ≤100mΩ
Battery Weight: 450kg
Battery Size: 450 × 1700 × 600mm *2 (Max)
Charging Temperature: -20～45℃
Discharging Temperature: -20～60 ℃
Storage Temperature: -20～45 ℃
Temperature Protection: 70℃ ± 5℃
Battery Casing: Sheet Metal Casing
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over Discharge Protection, Over Current Protection, Temperature Protection, Balancing, etc.
Application Field: Sightseeing Trains
Product Features
Fast charging at 500A
High current discharge capability
Lithium titanate battery technology
CAN communication, relay control
Long cycle life and high reliability
Environmentally friendly with low carbon footprint
