Product Details

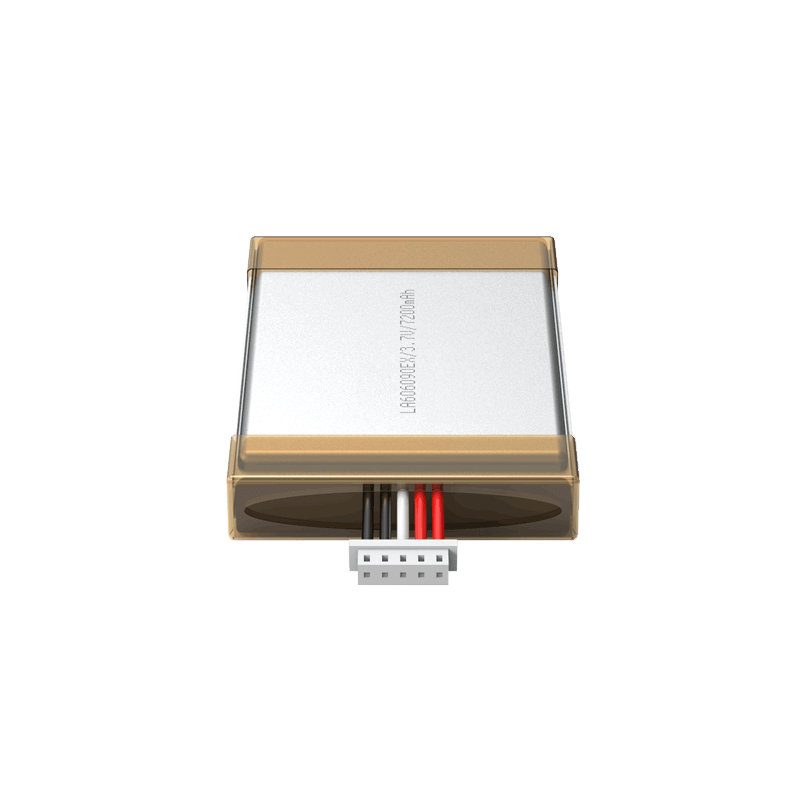

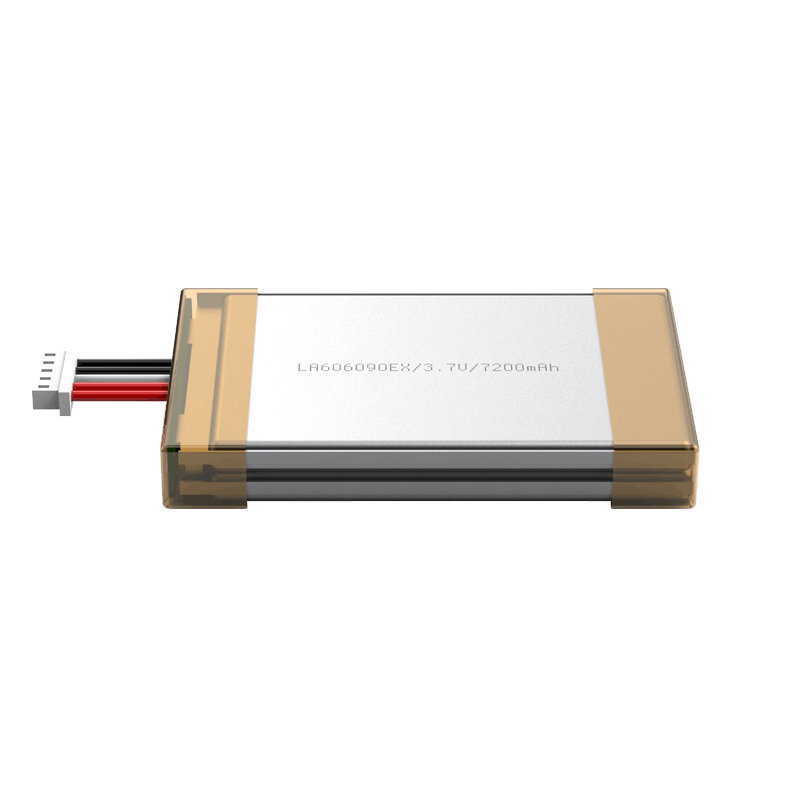

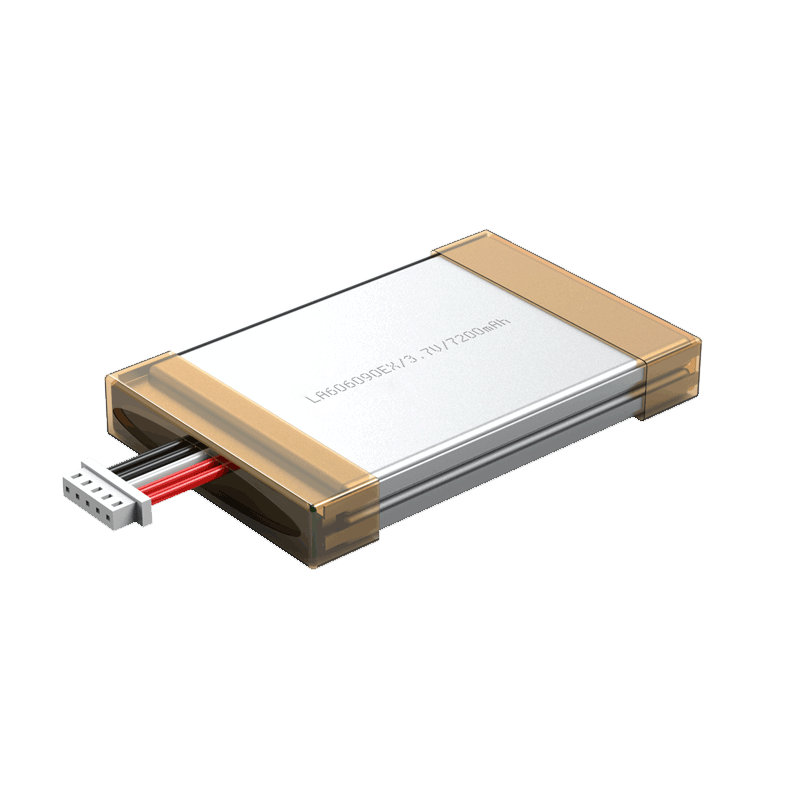

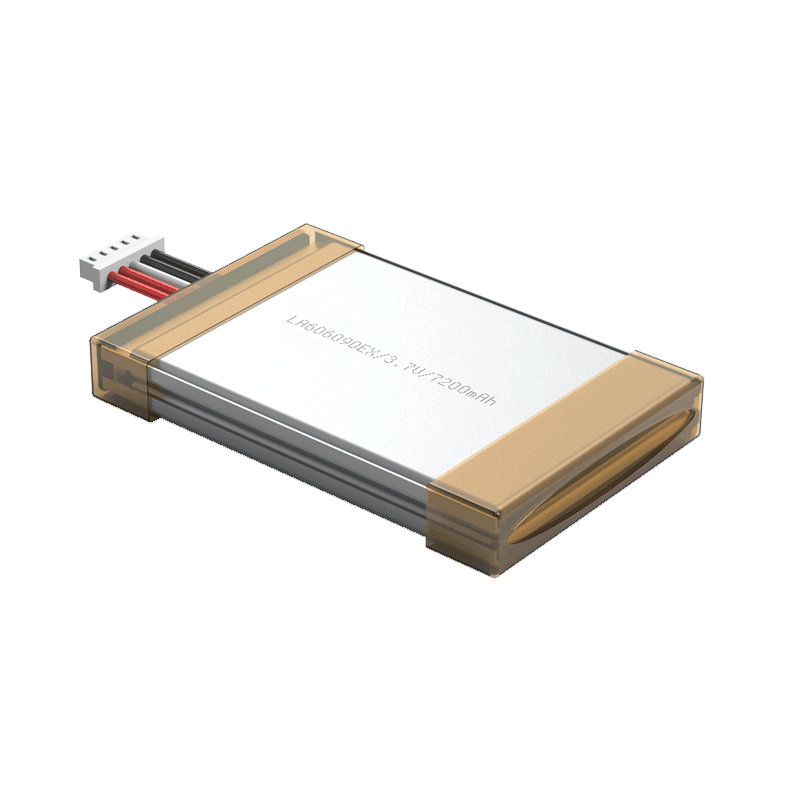

Cell Model: LA606090EX-3600mAh-3.7V
Battery Specification: LA606090EX-1S2P-7200mAh-3.7V
Nominal Voltage: 3.7V
Nominal Capacity: 7200mAh
Charging Voltage: 4.2V
Charging Current: ≤2.5A
Discharging Current: 2.3A
Instantaneous Discharging Current: 6.0A
Cut-off Discharging Voltage: 3.0V
Finished Product Internal Resistance: ≤200mΩ
Battery Weight: 160g
Product Dimensions: 13.0×61×95mm
Charging Temperature: 0 to 45℃
Discharging Temperature: -20 to 55℃
Storage Temperature: 0 to 25℃
Intelligent Lithium Battery Protection: Short-circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application Areas: Handheld terminals
Product Features
Explosion-Proof Design: Ensures safety and reliability in hazardous environments.
High Capacity: Provides 7200mAh capacity for extended usage in handheld terminals.
Intelligent Protection: Includes comprehensive safety features such as short-circuit protection, overcharge protection, over-discharge protection, and overcurrent protection.
Robust Performance: Capable of handling high discharging currents with a peak instantaneous discharging current of 6.0A.
Reliable Operation: Stable performance across a wide temperature range, suitable for various environments.
