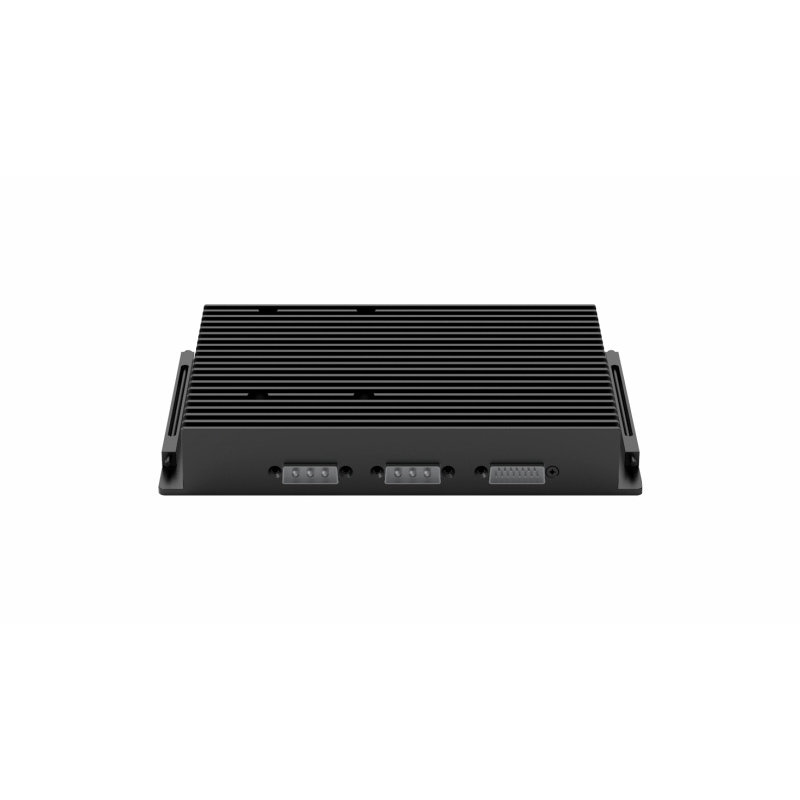

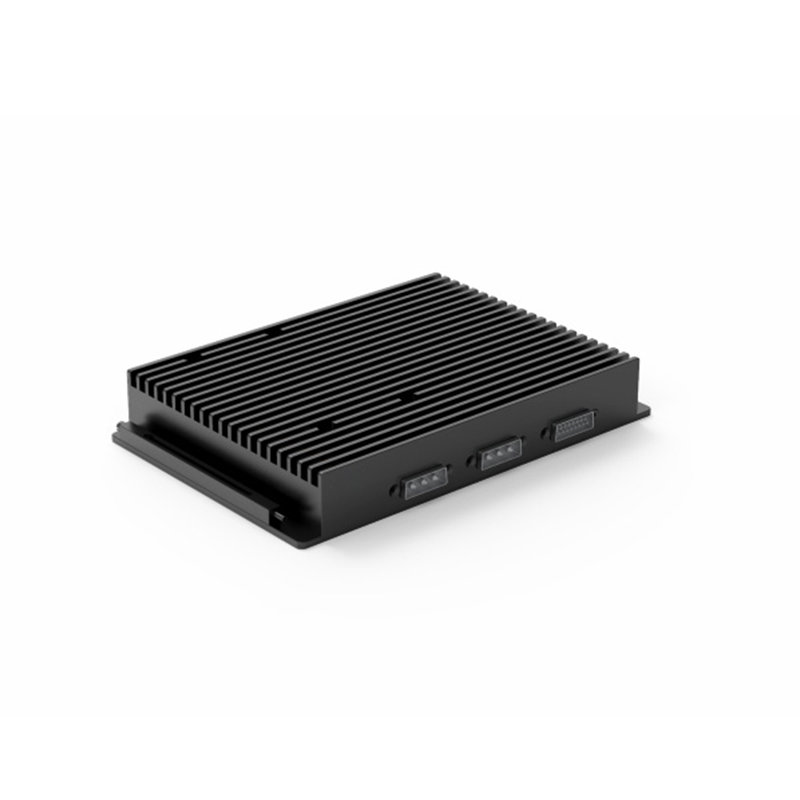

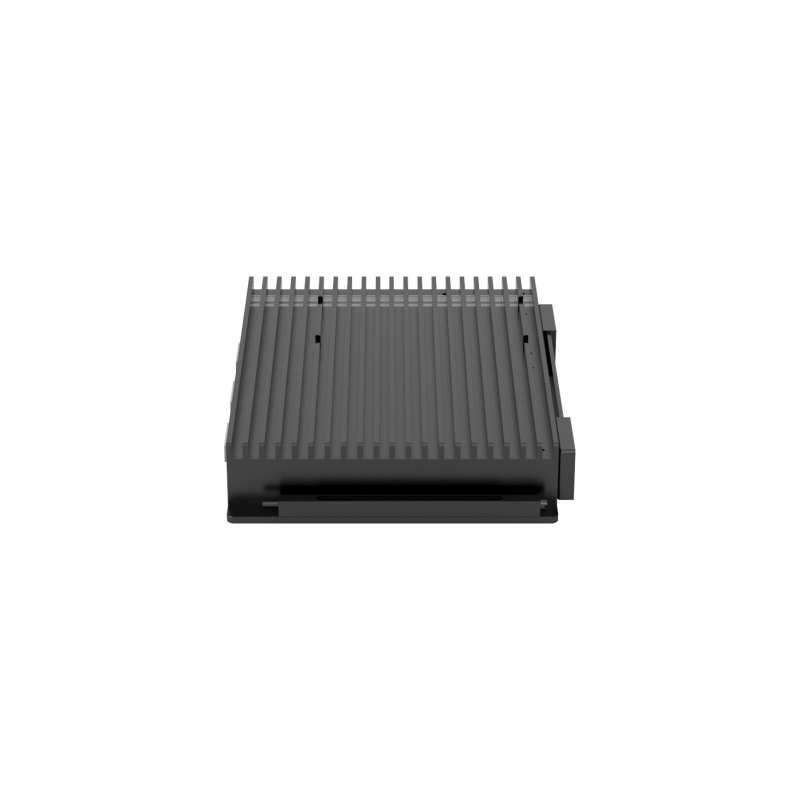

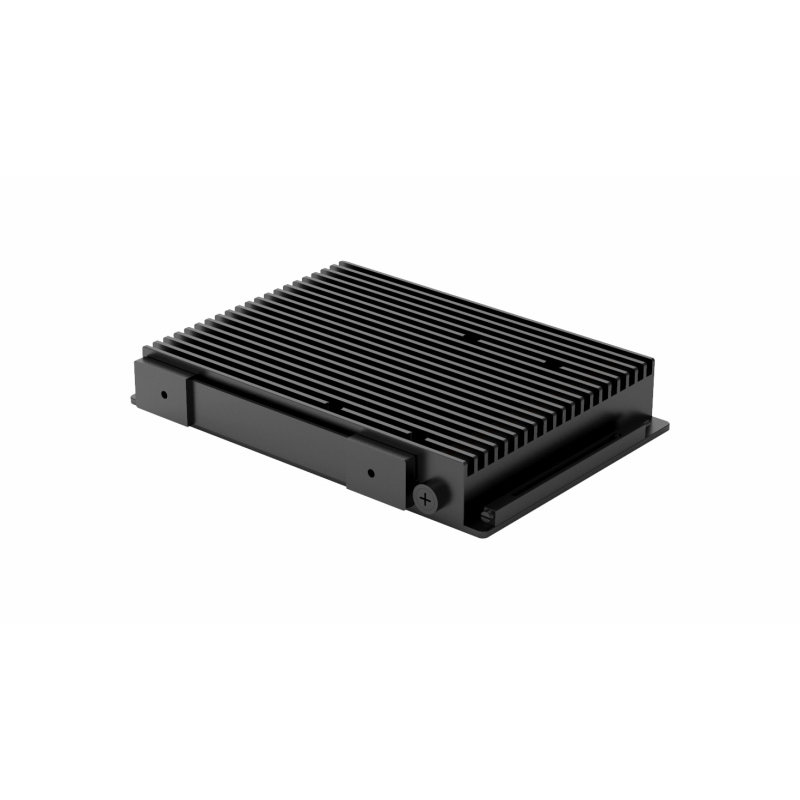

Special Reinforced Power Supply

Special reinforced power supply
24V-10A /12V multi-channel /5V multi-channel /±15V /±12V

Specifications

Specifications: AKD-2410 reinforced power supply
DC input: 18~36V
DC output: 24V-10A/12V multi-channel/5V multi-channel/±15V/±12V
Insulation performance:
Input to housing: 100M/500VDC
Output to housing: 100M/50VDC
Working temperature: -20℃～+55℃

Functional features

Protection function: Input overcurrent protection: fuse protection.
Input undervoltage protection: When the input voltage is lower than 14V, the power supply stops outputting. When the input voltage returns to +18V~+36V, it needs to be restarted to output normally
Control function:
The remote control power-on signal is used to control the opening and closing of the +24V/10A branch. The ground wire of the remote control power-on signal input terminal is shared with the negative terminal of the +5V/2A branch output
Interface definition:
The external function interface of the AKD-2410 power supply includes 1 DC input power supply, +18V~+36V, GUN; 7 DC output power supplies: +24V1, GND1, ±12V2, COM2, +12V3, GND3, +12V4, GND4, ±15V5, COM5, +5V6, GND6 and +24V7, GND7; control signal, remote control power-on signal input terminal

Weight and size

Product size: 229×163.5×35mm
Product weight: 2.0kg

Application field

Special equipment
Special environment, special power supply
